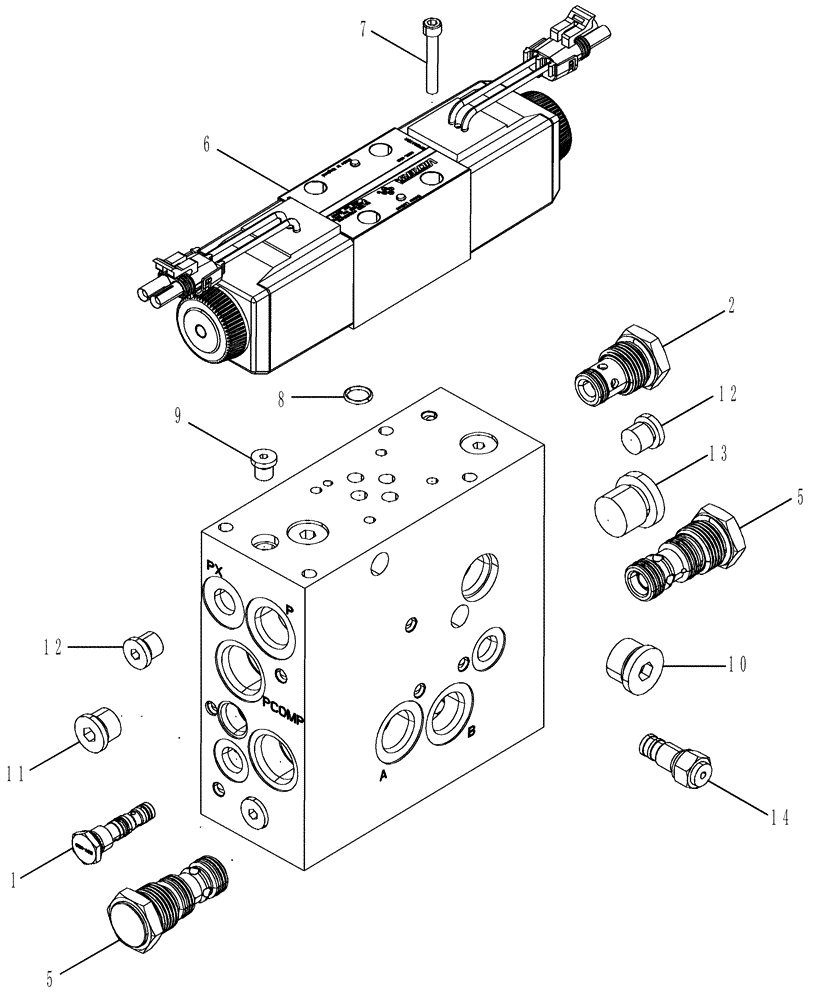

Запчасти Case IH 2388 (08-40) - VALVE, AUTO GUIDANCE - ASN HAJ303001 (07) - HYDRAULICS

87590231

VALVE

Inc. 1 - 12

1шт.

1

87591593

VALVE

1шт.

2

87591594

VALVE

1шт.

3

86625138

PLUG,7/18" - 14

1шт.

4

190704A1

CHECK VALVE

1шт.

5

87591596

VALVE

2шт.

6

87591597

VALVE

1шт.

7

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

9

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

10

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

11

9625178

PLUG,9/16" - 18 ORB

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

2шт.

13

87590351

VALVE

Pilot to Shift Cartridge (Not Shown)

1шт.

126056A1

SEAL KIT

(Not Shown)

1шт.

87590352

PLUG

Duel Steer Cylinders (Not Shown)

1шт.

87741567

VALVE

Single Steer Cylinder (Not Shown)

1шт.

87609274

SEAL KIT

(Not Shown)

1шт.

87591595

SEAL KIT

(Not Shown)

1шт.

149942C1

SEAL KIT

(Not Shown)

1шт.

190707A1

SEAL KIT

(Not Shown)

1шт.

87024936

SEAL KIT

(Not Shown)

1шт.
