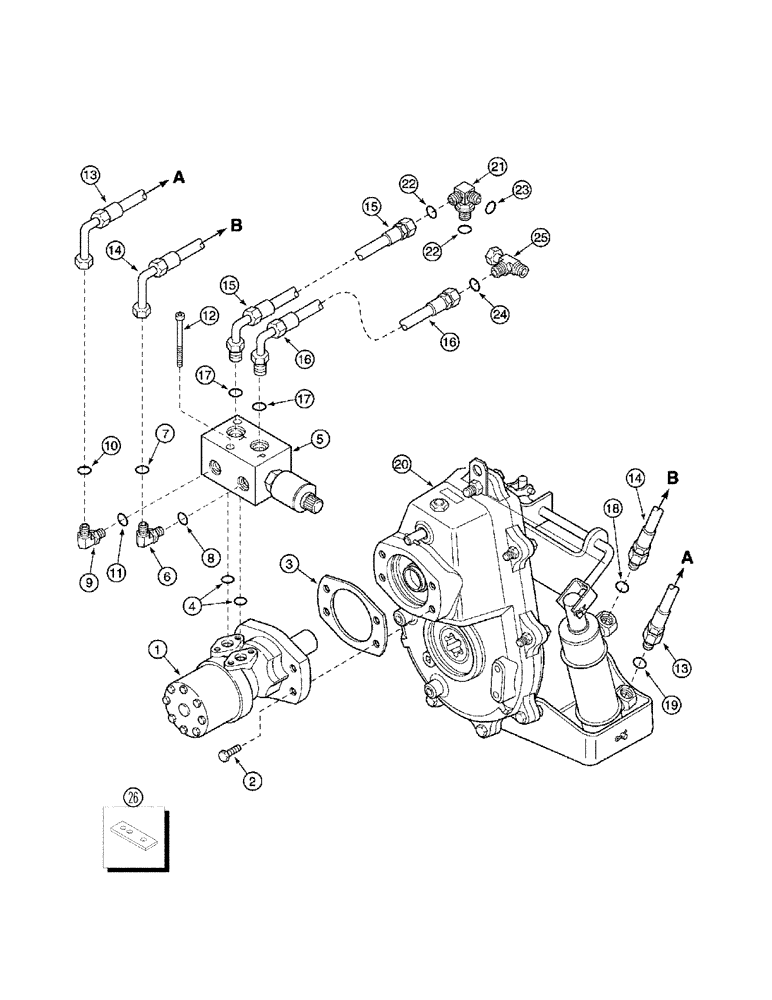

Запчасти Case IH 2388 (08-35) - HYDRAULICS - FEEDER REVERSER (07) - HYDRAULICS

1

393903A1

MOTOR, HYDRAULIC,397CC

1шт.

See Figure 08-36

1шт.

2

87302570

12 PT SCREW,1/2" - 13 x 1 1/4"

4шт.

3

400998A1

GASKET,0.79mm Thk

1шт.

4

277634

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

5

393904A1

VALVE

Feeder Reverser Motor

1шт.

See Figure 08-37

1шт.

6

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 7, 8

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1шт.

9

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 10, 11

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

865-8085

HEX SOC SCREW,M8 x 85mm, Cl 8.8

2шт.

13

391969A1

FLEXIBLE HOSE,10mm ID x 750mm L

750 mm (29-1/2 in), Extend

1шт.

14

391970A1

FLEXIBLE HOSE,10mm ID x 610mm L

610 mm (24 in), Retract

1шт.

15

395853A2

FLEXIBLE HOSE

520 mm (20-1/2 in), Return

1шт.

16

430394A1

FLEXIBLE HOSE

3050 mm (120 in), Supply

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

401134A2

GEARBOX

1шт.

See Figure 09A-21

1шт.

21

395408A1

TEE

Inc. 22, 23

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

26

427273A1

SUPPORT

Bracket, Clamp

1шт.

27

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

(Not Shown)

1шт.

28

231-5146

FLANGE NUT,3/8"-16

(Not Shown)

1шт.
