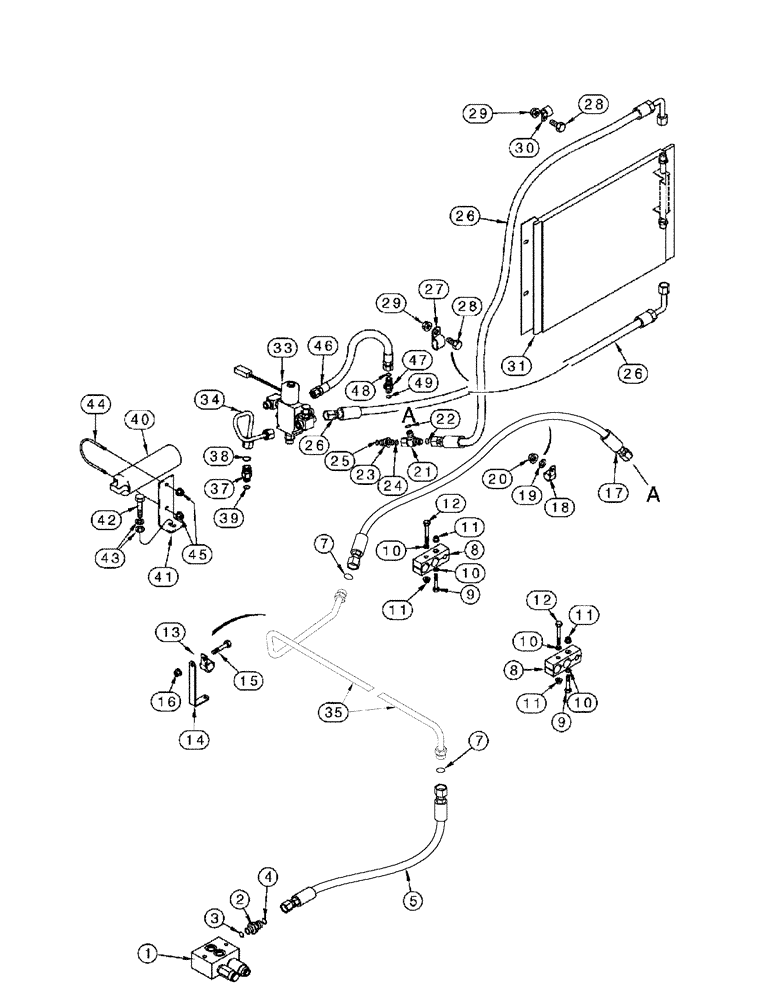

Запчасти Case IH 2388 (08-26) - HYDRAULICS - SEPARATOR CLUTCH - PTO CIRCUIT (07) - HYDRAULICS

1

327580A1

BY-PASS VALVE

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

391541A1

FLEXIBLE HOSE

By-Pass, Serial Range: Valve-Tube

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

8

227575A1

CLAMP

2шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

10

495-21038

WASHER,5/16"

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

14

291899A1

SUPPORT

1шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

17

370263A1

FLEXIBLE HOSE

, Serial Range: Tube-Clutch

1шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

19

495-11028

WASHER,1/4", SAE

1шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

21

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Inc. 22

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Inc. 24, 25

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

390011A1

FLEXIBLE HOSE

, Serial Range: PTO-Cooler

2шт.

27

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

31

183747C1

OIL COOLER

1шт.

33

275986A2

VALVE

PTO Clutch, Not Serviced As An Assembly, Order 275982A1

1шт.

34

275920A2

HYD TUBE

PTO Cooling

1шт.

35

370261A2

HYD TUBE,1740.9, 327.3 mm Length

By-Pass Valve to Clutch

1шт.

37

275974A1

CHECK VALVE,13/16" - 16 ORFS x 3/4" - 16 ORB

In-Line, Inc. 38, 39

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

1541941C1

ACCUMULATOR

1шт.

41

275987A1

SUPPORT

1шт.

42

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

43

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

2шт.

44

186505C1

BOLT,U, 1/4" - 20 x 3.2"

1шт.

45

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

46

278174A1

FLEXIBLE HOSE

PTO, Serial Range: Valve-Clutch

1шт.

47

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Inc. 48, 49

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
