Запчасти Case IH 2388 (08-16) - VALVE ASSY - HEADER HEIGHT (07) - HYDRAULICS

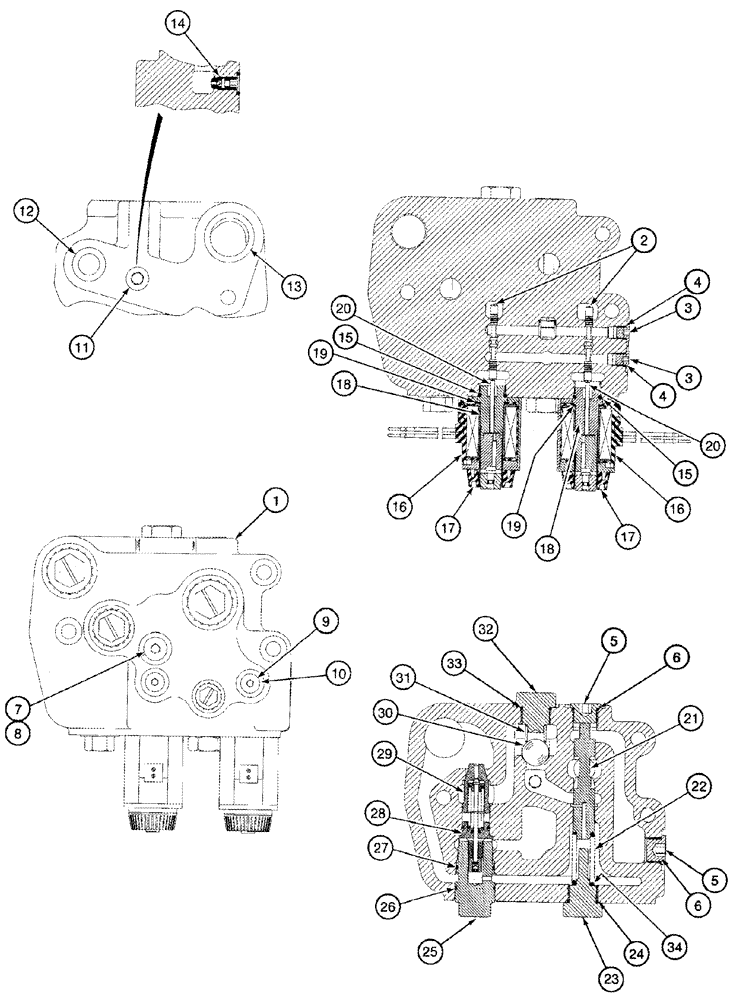

Схема запчастей Case IH 2388 - (08-16) - VALVE ASSY - HEADER HEIGHT (07) - HYDRAULICS
27
20
15
19
34
6
17
14
12
2
18
13
29
16
19
26
9
6
17
10
33
5
16
3
28
25
23
5
4
4
31
1
21
18
3
30
11
24
15
7
8
22
32
20

Артикул

Название

Примечание

Количество

186572A1

CONTROL VALVE

Inc. 1 - 34, Header Height, Serial Range: -HAJ301381

1шт.

186572A2

CONTROL VALVE

Inc. 1 - 2-, 23, Header Height, Start Serial: HAJ301381

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

188104A1

SPOOL

Pilot

2шт.

3

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Inc. 4

2шт.

4

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

5

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

Incl 10

2шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

12

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1шт.

14

188115A1

VALVE POPPET

Signal

1шт.

15

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

243254A1

KIT

Inc. 16 - 16B, Without Diode, 12 Volt, DC

2шт.

16

188105A1

SOLENOID

Without Diode, 12 Volt, DC

1шт.

16a

225318C1

ELEC CONNECTOR,2 Pin

(Not Shown)

1шт.

16b

225315C1

ELEC CONNECTOR,Male, 2 Pin

Wedge, (Not Shown)

1шт.

17

188106A1

NUT

2шт.

18

188117A1

CARTRIDGE,72.25mm OAL

Solenoid

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

20

188116A1

PIN,3.25mm OD x 39.93mm L

Solenoid Actuating

2шт.

21

190698A2

SPOOL

Meter In, Main Flow, Serial Range: -HAJ301381

1шт.

22

190699A1

SPRING

Meter In, Main Flow, Serial Range: -HAJ301381

1шт.

23

188110A1

PLUG

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

, Serial Range: -HAJ301381

1шт.

87643252

KIT

Meter Out, Inc. 25 - 29, Serial Range: -HAJ301381

1шт.

25

188111A1

PLUG,1-1/16" - 18

Meter Out Poppet, Serial Range: -HAJ301381

1шт.

26

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

, Serial Range: -HAJ301381

1шт.

27

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

, Serial Range: -HAJ301381

1шт.

28

188112A1

VALVE POPPET

Servo, Meter Out, Serial Range: -HAJ301381

1шт.

29

87641219

VALVE POPPET

, Serial Range: -HAJ301381

1шт.

30

511-10200

BALL,20mm Dia

, Serial Range: -HAJ301381

1шт.

31

188114A1

SPRING

Load Check, Serial Range: -HAJ301381

1шт.

32

188107A1

PLUG

, Serial Range: -HAJ301381

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

, Serial Range: -HAJ301381

1шт.

34

NSS

NOT SOLD SEPARAT

Shim, Spring, Serial Range: -HAJ301381

1шт.

243253A1

SEAL KIT

Repair, Inc. 4, 6, 8, 10-13, 15, 19, 24, 26, 27, 33, Serial Range: -HAJ301381

1шт.

Выбрано товаров: 41
