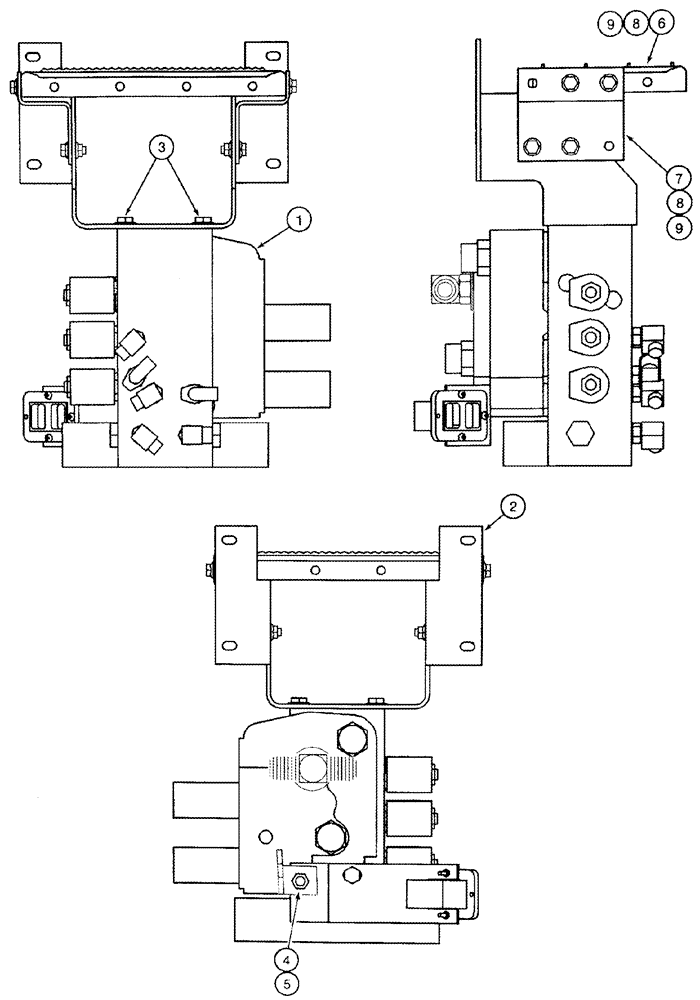

Запчасти Case IH 2388 (08-11) - VALVE, CONTROL - MOUNTING (07) - HYDRAULICS

1

124565A3

VALVE, CONTROL

Header Lift

1шт.

See Figure(s) 08-09, 08-10, 08-12, 08-14, 08-15, If Used

1шт.

1

124566A3

VALVE, CONTROL

Header Lift With Reel Fore and Aft

1шт.

See Figure(s) 08-09, 08-14, If Used

1шт.

1

124567A3

VALVE, CONTROL

Header Lift With Reel Fore and Aft and Field Tracker

1шт.

See Figure(s) 08-09, 08-15, If Used

1шт.

1

124567A3R

REMAN-HYD VALVE

Reman Header Lift With Reel Fore and Aft and Field Tracker

1шт.

1

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

2

123883A4

SUPPORT

1шт.

3

905-10020

BOLT,Hex Flg, M10 x 20mm

4шт.

4

127379A2

SUPPORT

Valve, Rear, Mounts to Tube Clamp Support Bolt

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

See Figure 08-12 REF 21, For Mounting Stud

1шт.

6

1531337C1

STEP

Service, At Valve Mounting Bracket, Front Grain Tank Inspection

2шт.

For Additional Mounting, See Figure 09E-06

1шт.

7

141410A1

SUPPORT

2шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

16шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

100-1531

SNAP RING,#31, Ext

4шт.
