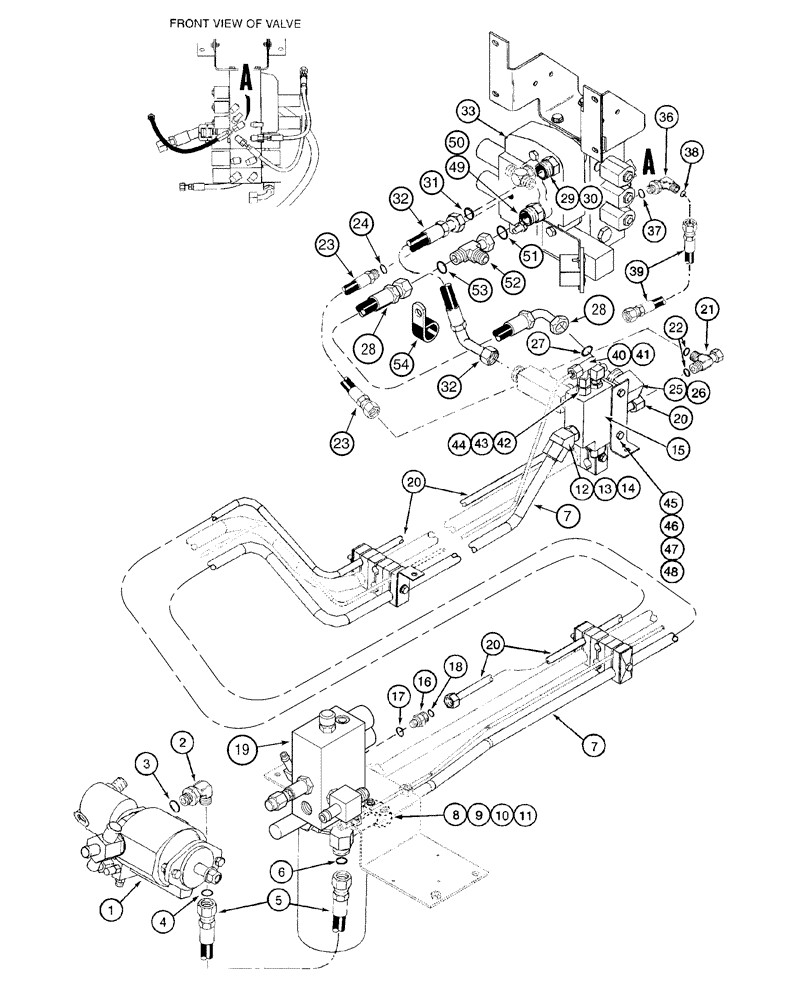

Запчасти Case IH 2388 (08-09) - HYDRAULICS - HEADER LIFT VALVE SUPPLY (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
Pump, Hydraulic, Auxiliary
1шт.
Order Component Parts
1шт.
See Figure 08-08
1шт.
2
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Inc. 3, 4
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
5
87338783
FLEXIBLE HOSE,16mm ID x 840mm L
840 mm (33-1/8 in), Header Lift Supply
1шт.
6
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
7
124375A2
TUBE
Header Lift Supply
1шт.
8
1541538C1
CLAMP
Two Piece, 3/4 Inch OD Tube
1шт.
9
1541537C1
PLATE
1шт.
10
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2шт.
11
231-5344
FLANGE NUT,Flg, 1/4"-20
2шт.
12
201-352
ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB
Includes Ref. 13, 14
1шт.
13
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
14
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
15
114851A2
VALVE
Steering
1шт.
See Figure 05-26
1шт.
16
201-126
HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB
Inc. 17, 18
1шт.
17
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
18
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
19
384307A1
SOLENOID VALVE
Pressure Regulator
1шт.
See Figure 08-28
1шт.
20
126870A1
TUBE
Supply, From Pressure Regulator
1шт.
21
201-416
TEE,13/16"-16 ORFS x 13/16"-16 Sw Run
Inc. 22
1шт.
22
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
23
128101A1
FLEXIBLE HOSE
690 mm (27-1/4 in), Inc. 24, Header Lift Valve Regulator Supply
1шт.
24
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
25
201-306
90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB
Inc. 26, 27
1шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
27
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
28
400633A1
FLEXIBLE HOSE,16mm ID x 735mm L
735 mm (28-15/16 in), Header Lift Valve Supply
1шт.
29
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Includes Ref. 30, 31
1-2шт.
30
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
31
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
32
128097A1
HOSE,19.05mm ID x 710mm L
710 mm (28 in), Header Lift Valve Return
1шт.
33
124565A3
VALVE, CONTROL
Header Lift
1шт.
See Figure 08-12
1шт.
33
124566A3
VALVE, CONTROL
Header Lift With Reel Fore and Aft
1шт.
See Figure 08-14
1шт.
33
124567A3
VALVE, CONTROL
Header Lift With Reel Fore and Aft and Field Tracker
1шт.
See Figure 08-15
1шт.
33
124567A3R
REMAN-HYD VALVE
Reman Header Lift With Reel Fore and Aft and Field Tracker
1шт.
33
124567A3C
CORE-VALVE HYD
Core Return Number
1шт.
36
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
Includes Ref. 37, 38
1шт.
37
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
38
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
39
127997A1
FLEXIBLE HOSE
640 mm (25-1/4 in), Pump Signal to Header Lift Valve
1шт.
40
201-434
TEE,11/16"-18 ORFS x 11/16"-18 Sw Br
Inc. 41
1шт.
41
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
42
128328A1
FITTING
With Orifice Check Valve, Inc. 43, 44
1шт.
43
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
44
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
45
124576A1
SUPPORT
1шт.
46
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
2шт.
47
495-11034
WASHER,5/16", SAE
1шт.
48
231-5315
FLANGE NUT,Flg, 5/16"-18
2шт.
49
201-131
HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB
Inc. 50, 51
1шт.
50
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
51
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
52
201-433
TEE,1"-14 ORFS x 1"-14 Sw Run
1шт.
53
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
54
515-23254
CLAMP,1", Insul, 3/8" Bolt
Used with Ref. 32
1шт.
55
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
1шт.
56
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
Выбрано товаров: 65
