Запчасти Case IH 2388 (08-08) - PUMP, AUXILIARY - MOUNTING AND DRIVE (07) - HYDRAULICS

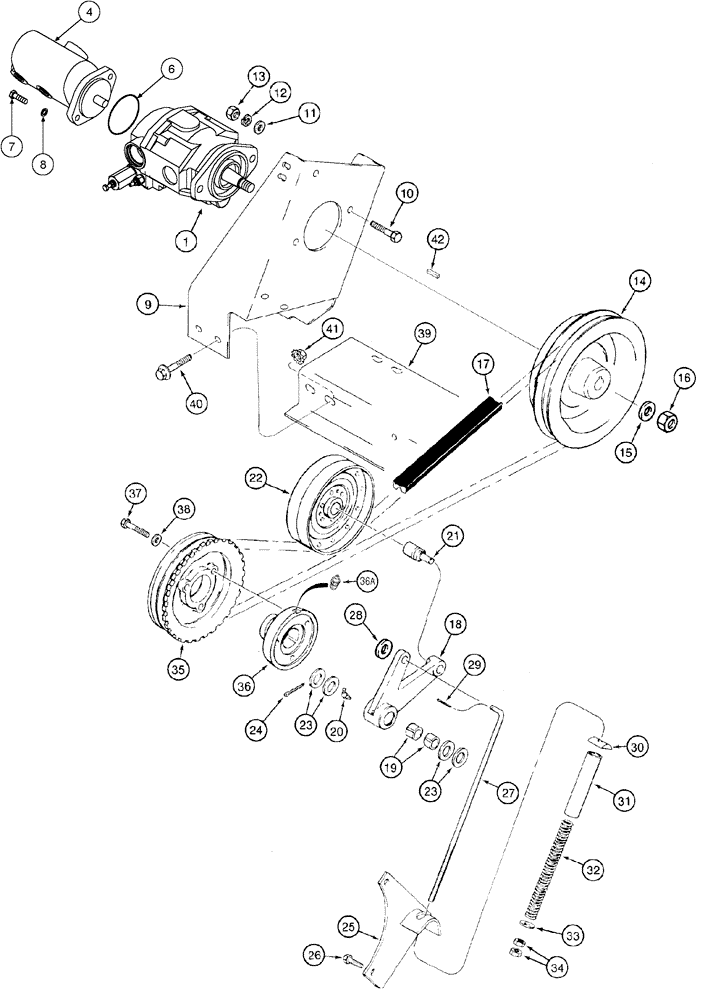

Схема запчастей Case IH 2388 - (08-08) - PUMP, AUXILIARY - MOUNTING AND DRIVE (07) - HYDRAULICS
12
36
8
38
33
29
36a
21
20
4
18
13
19
31
23
35
16
42
34
1
11
30
26
15
32
22
6
9
25
37
41
28
39
24
23
40
10
7
27
17
14

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Pump, Hydraulic, Auxiliary, Inc. 1- 8, 8B

1шт.

Order Component Parts

1шт.

1

87338787

HYDRAULIC PUMP

Piston Type, Front, Inc. 2, 3

1шт.

87338787R

REMAN-HYD PUMP

2388 ASN HAJ300001 (10/06-)

1шт.

87338787C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87510575

SEAL KIT

Seal Repair, Piston Pump, (Not Shown)

1шт.

3

87510576

COMPENSATOR

Piston Pump, Inc. 3A, (Not Shown)

1шт.

3a

87510577

SEAL KIT

Seal, Compensator Spool, (Not Shown)

1шт.

4

375147A1

PUMP, HYDRAULIC,25.2 CC

Rear, Inc. 5

1шт.

5

291744A1

SEAL KIT

Seal, (Not Shown)

1шт.

6

238-6042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

Used Between Pumps

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

495-81265

WASHER,.391" x 5/8" x .065"

2шт.

8a

62-32520

HEX SOC SCREW,1/4"-28 x 1 1/4"

Mounts Regulator to Pump Assembly, (Not Shown)

4шт.

8b

238-6042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

1шт.

9

443255A1

SUPPORT

Auxiliary Pump, Serial Range: -HAJ301674

1шт.

9

87635893

SUPPORT ASSY.

Auxiliary Pump, Start Serial: HAJ301674

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

11

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

122948A1

PULLEY

Drive, Auxiliary Pump

1шт.

15

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

16

231-46112

LOCK NUT,3/4"-16, GB

1шт.

17

440498A3

BELT,16.00 mm W x 2550.82 mm L, 2 Ribs

Drive

1шт.

18

1330517C1

LEVER

Auxiliary Pump Drive, Inc. 19

1шт.

19

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

2шт.

20

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

21

274844R91

BEARING ASSY,30mm OD x 73.66mm L

Idler Pulley

1шт.

22

192865C1

PULLEY

8 in OD, Idler

1шт.

23

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

1шт.

24

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

25

87614053

BRACKET

Pump Drive

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

27

191823C2

ROD

Auxiliary Drive Jackshaft

1шт.

28

495-11053

WASHER,1/2", SAE

1шт.

29

432-1216

COTTER PIN,3/16" x 1"

1шт.

30

194652C1

PIVOT

1шт.

31

87331922

SPACER

165 mm (6-1/2 in)

1шт.

32

V368

SPRING

1шт.

33

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

2шт.

35

1330488C1

PULLEY

8.85 OD, Drive, Auxiliary Pump

1шт.

Items 35 - 38 are part of the gearbox assembly. See Figure 06-01.

1шт.

36

196482C3

HUB

Grease Fitting Access Hole

1шт.

36a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

37

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

38

495-11053

WASHER,1/2", SAE

3шт.

39

112454A5

SUPPORT

Jackshaft and Auxiliary Pump, Serial Range: -HAJ301674

1шт.

See Figure 09A-05

1шт.

39

87642895

SUPPORT ASSY.

Jackshaft and Auxiliary Pump, Start Serial: HAJ301674

1шт.

See Figure 09A-05

1шт.

40

87302717

FLANGE BOLT,Bolt Flange 1/2-13X1-1/4 GR8 ZND

1/2 x 1-1/4; 8, Serial Range: -HAJ301674

4шт.

40

87302717

FLANGE BOLT,Bolt Flange 1/2-13X1-1/4 GR8 ZND

, Start Serial: HAJ301674

6шт.

40

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

, Start Serial: HAJ301674

1шт.

41

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

, Serial Range: -HAJ301674

4шт.

41

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

, Start Serial: HAJ301674

7шт.

42

194022A1

KEY

Pump Shaft

1шт.

Выбрано товаров: 58
