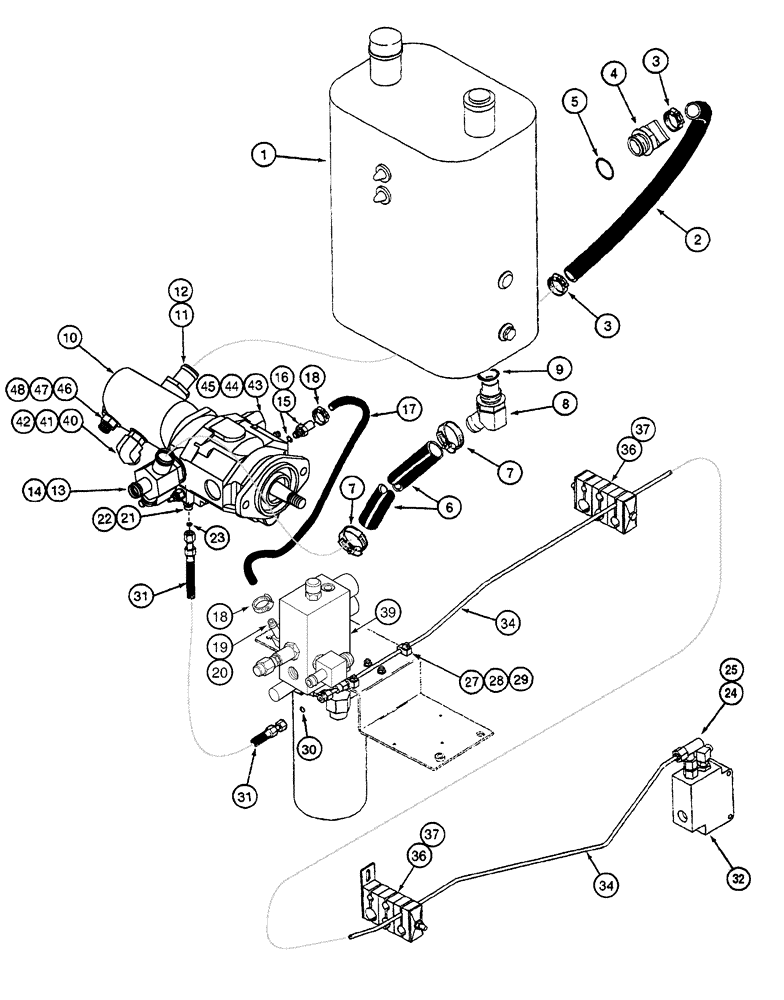

Запчасти Case IH 2388 (08-06) - HYDRAULICS - AUXILIARY PUMP SUPPLY (07) - HYDRAULICS

1

86991459

RESERVOIR, HYDRAULIC

1шт.

See Figure 08-01

1шт.

2

1541688C1

FLEXIBLE HOSE

660 mm (26 in), Suction to Reel Drive Pump, Cut From 1541953C1

1шт.

3

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

4

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

6

184618A1

FLEXIBLE HOSE

305 mm (12-1/8 in), Suction to Header Lift Pump, Cut From 1541953C1

1шт.

7

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

8

182811A1

ELBOW

Inc. 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Pump, Hydraulic, Auxiliary

1шт.

Order Component Parts

1шт.

See Figure 08-08

1шт.

11

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

182813A1

TEE

1-1/4 x 1 x 1 in, Inc. 14

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

15

217-387

FITTING,3/8" Hose Barb x 9/16" - 18 Male ORB

Inc.16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

128005A1

HYDRAULIC HOSE,9.52 mm ID x 445.00 mm

Pump Case Drain, Cut from S118400X

1шт.

18

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

19

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Inc. 20

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Inc. 22, 23

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

24

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

Inc. 25

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

27

236558A1

CLAMP

2шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

29

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

255209A1

FLEXIBLE HOSE

530 mm (20-7/8 in), Pump Signal

1шт.

31a

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

(Not Shown)

1шт.

32

114851A2

VALVE

Steering

1шт.

See Figure 05-26, REF 3

1шт.

34

252596A1

TUBE,0.375" OD, 2106.5 mm Length

Signal

1шт.

36

255212A1

CLAMP

1шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

39

384307A1

SOLENOID VALVE

Pressure Regulator

1шт.

See Figure 08-28

1шт.

40

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 41, 42

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

42

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 44, 45

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

45

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

46

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
