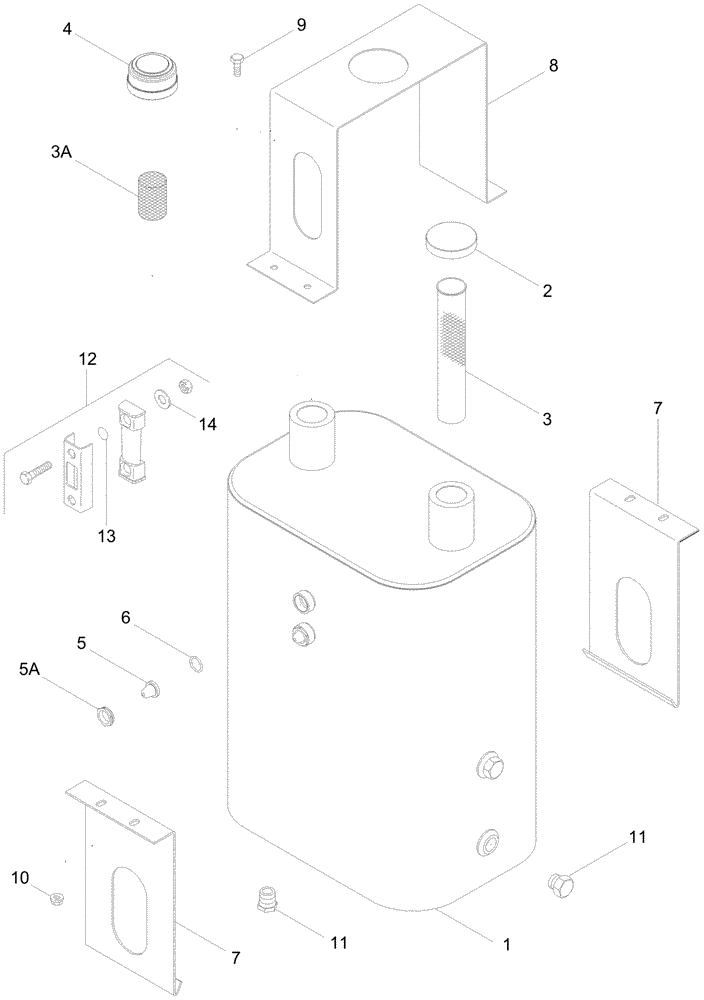

Запчасти Case IH 2388 (08-01) - RESERVOIR - OIL, HYDRAULIC (07) - HYDRAULICS

87311894

RESERVOIR, HYDRAULIC

Incl. 1-4, 11-12

1шт.

1

NSS

NOT SOLD SEPARAT

Tank

1шт.

2

1346309C2

FILLER CAP

1шт.

3

104407A1

SCREEN

2шт.

3a

191116A1

BAFFLE

1шт.

4

1272941C2

BREATHER

1шт.

5

86990536

LENS

Sightglass

2шт.

5a

86990537

NUT,15/16"

Lens Retainer

2шт.

6

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

2шт.

7

1979829C1

SUPPORT

2шт.

8

1347146C1

CLAMP

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

11

214389

PLUG,3/4" - 16 ORB

2шт.

12

87107405

LEVEL GAUGE

Reservoir

1шт.

13

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

14

720060

RUBBER WASHER

2шт.
