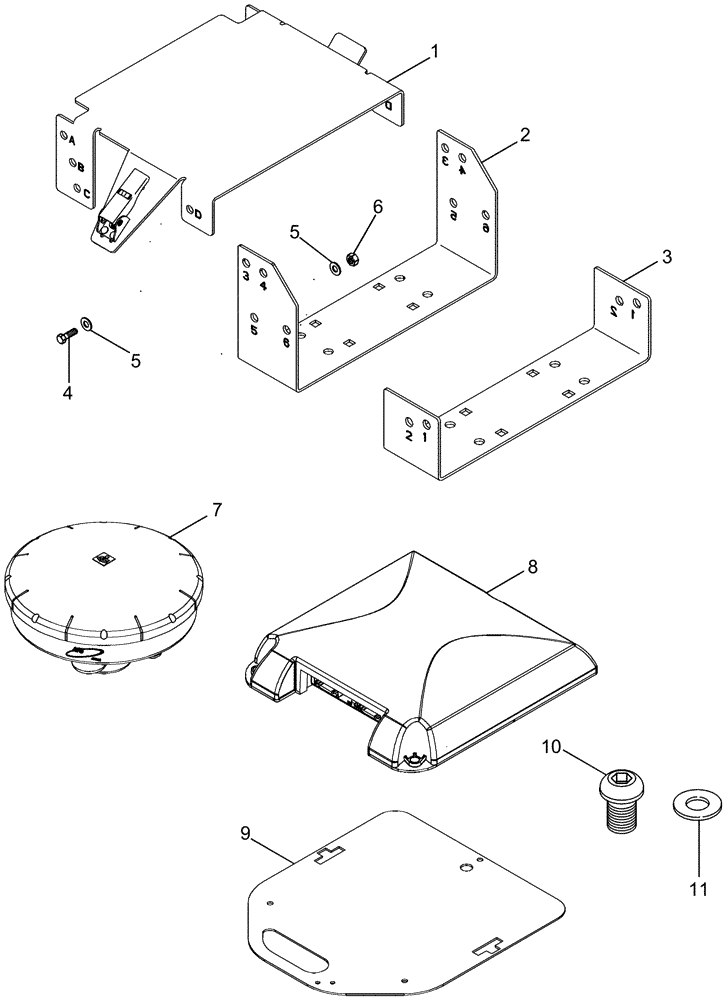

Запчасти Case IH 2388 (04-50) - AFS - ANTENNA UNIT (06) - ELECTRICAL

1

87359035

BRACKET

252 Receiver With Latch

1шт.

2

87335677

BRACKET

Long

1шт.

3

87335635

BRACKET

Short

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

9706690

NUT,M8 x 1.25, Cl 8

4шт.

7

87350409

ANTENNA

/Receiver AFS100, (WAAS Only)

1шт.

7

87491749R

REMAN ELECT CONTROL

2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ300001, Receiver AFS100, (WAAS Only) (10/06-), Reman for New PN 87350409

1шт.

7

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

87595761

KIT

/Receiver AFS262

1шт.

9

87568855

MOUNTING PLATE

1шт.

10

87106351

HEX SOC SCREW,BTN HD, 5/8" - 11 x 3/4"

To Mount AFS100

1шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

12

86511479

BOLT,Hex Flg, M8 x 20mm

(Not Shown)

3шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

(Not Shown)

3шт.

14

9706690

NUT,M8 x 1.25, Cl 8

(Not Shown)

3шт.
