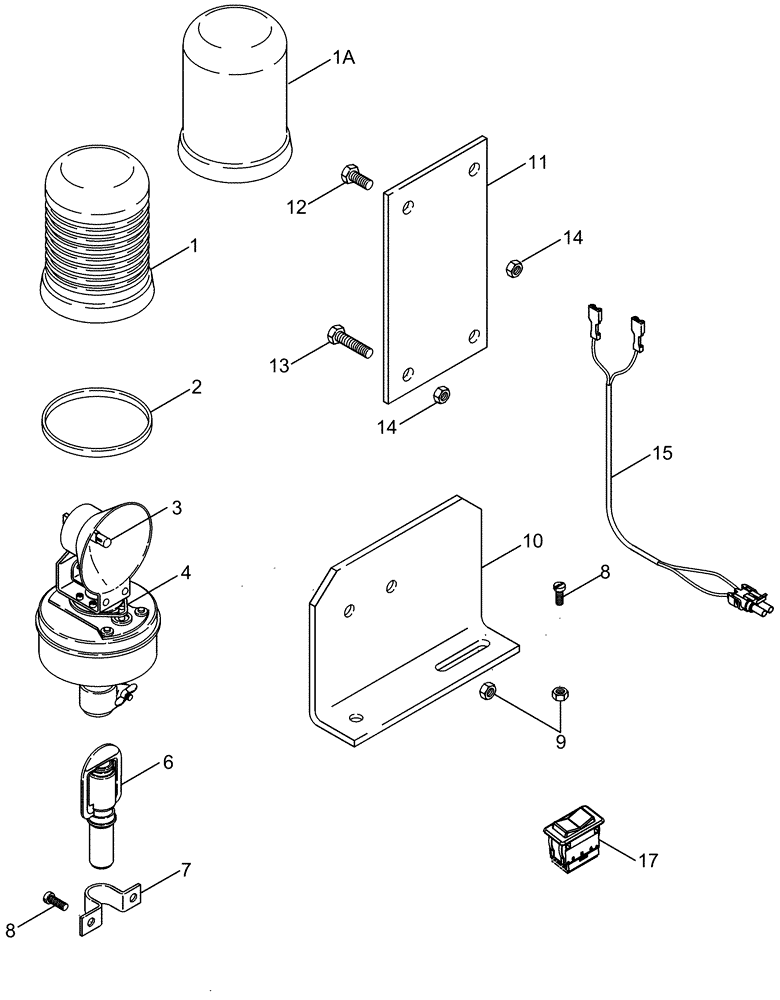

Запчасти Case IH 2388 (04-48) - BEACON, ROTATING (06) - ELECTRICAL

92392C1

BEACON

Rotating Beacon, Inc. 1A , 3, 4, If Used

2шт.

1

1133187R1

CAP

Orange, Inc. 2

1шт.

1a

A187542

LENS

Amber

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

3217312R1

BULB,H1, 12V, 55W

1шт.

4

A187575

O-RING

Rotating Beacon

1шт.

6

244106A1

ELEC CONNECTOR

Front

2шт.

7

3177099R1

CLAMP

2шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

101567A2

SUPPORT

Rear

1шт.

11

180429A1

SUPPORT

Front

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

13

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

14

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

15

87345075

WIRE HARNESS

Beacon Light

1шт.

16

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

(Not Shown)

2шт.

17

87307828

SWITCH

1шт.
