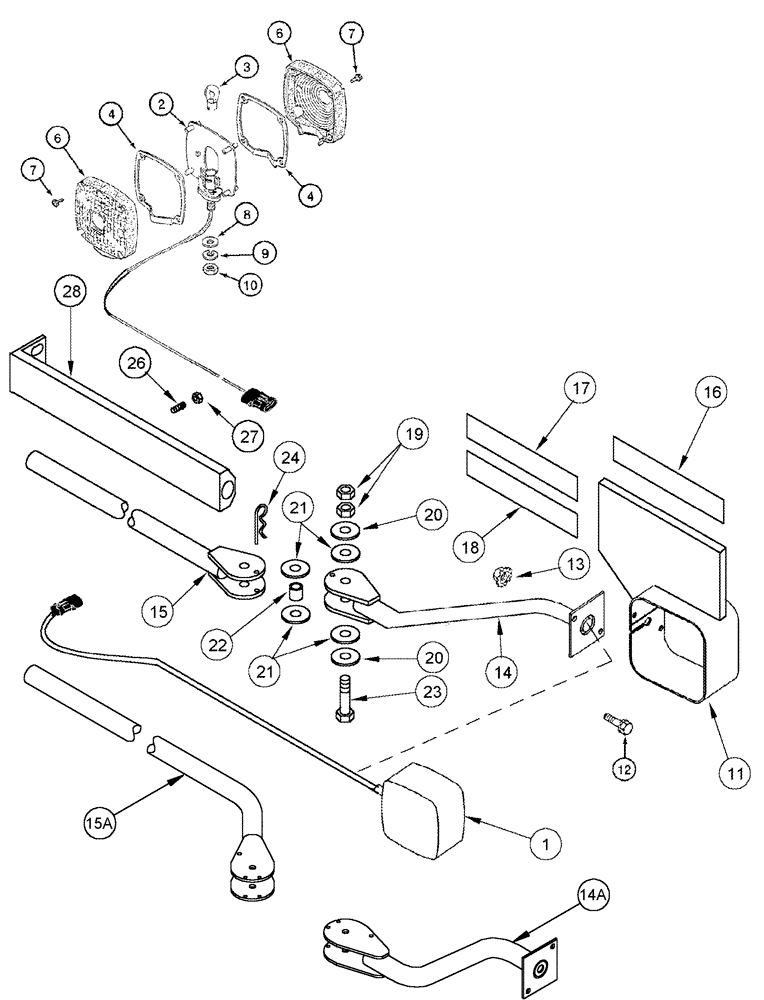

Запчасти Case IH 2388 (04-41) - LAMP ASSY - FLASHERS, SIDE (06) - ELECTRICAL

1

398378A1

LAMP,Halogen, 12V, 32W, Clear

Inc. 2 - 10

2шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

A43731

GASKET

2шт.

A44202

KIT

Inc. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Lens

2шт.

7

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

8шт.

8

495-11053

WASHER,1/2", SAE

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

10

425-118

NUT,1/2"-20, G5

1шт.

11

390636A1

BRACKET

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

398043A2

ARM

Marker Lamp, Outer

2шт.

14a

86991379

TUBE

Marker Lamp, Outer

2шт.

15

403387A1

TUBE

Marker Lamp, Inner

2шт.

15a

86991378

ARM

Marker Lamp, Inner

2шт.

16

311864A1

REFLECTOR

Amber

2шт.

17

311863A1

REFLECTOR

Red

2шт.

18

311865A1

REFLECTOR

Orange

2шт.

19

231-4146

NUT,3/8"-16, GB

4шт.

20

495-81143

WASHER,13/32" x 1 1/2" x .120"

4шт.

21

403388A1

WASHER

1-1/8 x 3/8 x 1/8, Nylon

8шт.

22

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

2шт.

23

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

24

480523R1

HAIR PIN COTTER

2шт.

25

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

26

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

4шт.

26

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

27

425-106

NUT,3/8"-16, Cl 5

4шт.

27

231-5146

FLANGE NUT,3/8"-16

8шт.

28

403052A2

BRACKET

2шт.
