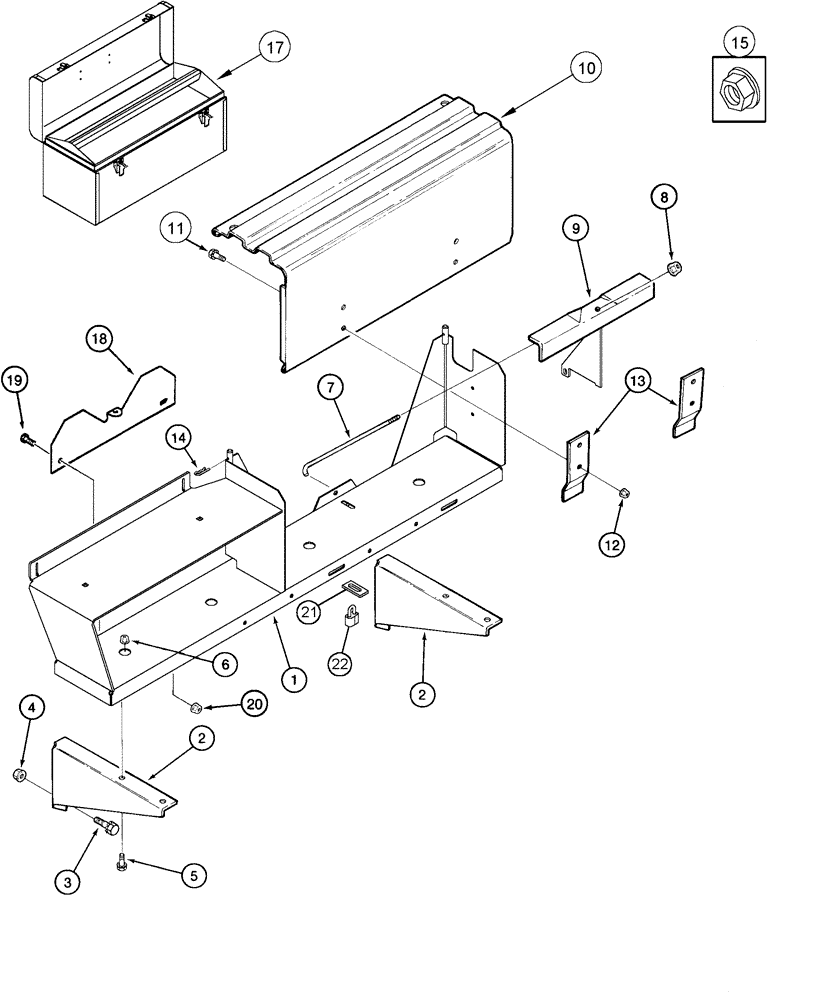

Запчасти Case IH 2388 (04-34) - BATTERY - BOX (06) - ELECTRICAL

1

394365A1

SUPPORT

1шт.

2

142495A2

SUPPORT

2шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

4

231-5146

FLANGE NUT,3/8"-16

5шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

A147915

BOLT

1шт.

8

425-104

NUT,1/4"-20, Cl 5

1шт.

9

229550A1

CLAMP

Battery Lock Assembly, Anti-Theft

1шт.

10

142496A1

COVER

1шт.

11

409-758

BOLT,Hex Flg, 5/16" - 18 x 1/2", Spcl

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

13

142497A2

STRAP

2шт.

14

480523R1

HAIR PIN COTTER

2шт.

15

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

4шт.

16

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX, (Not Shown)

1шт.

17

392914A1

BOX, TOOL

1шт.

18

143481A1

SUPPORT

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

229548A1

LARGE PLATE

PLATE, LARGE Lock Battery Hold Down

1шт.

22

D93753

PADLOCK

With Keys

1шт.
