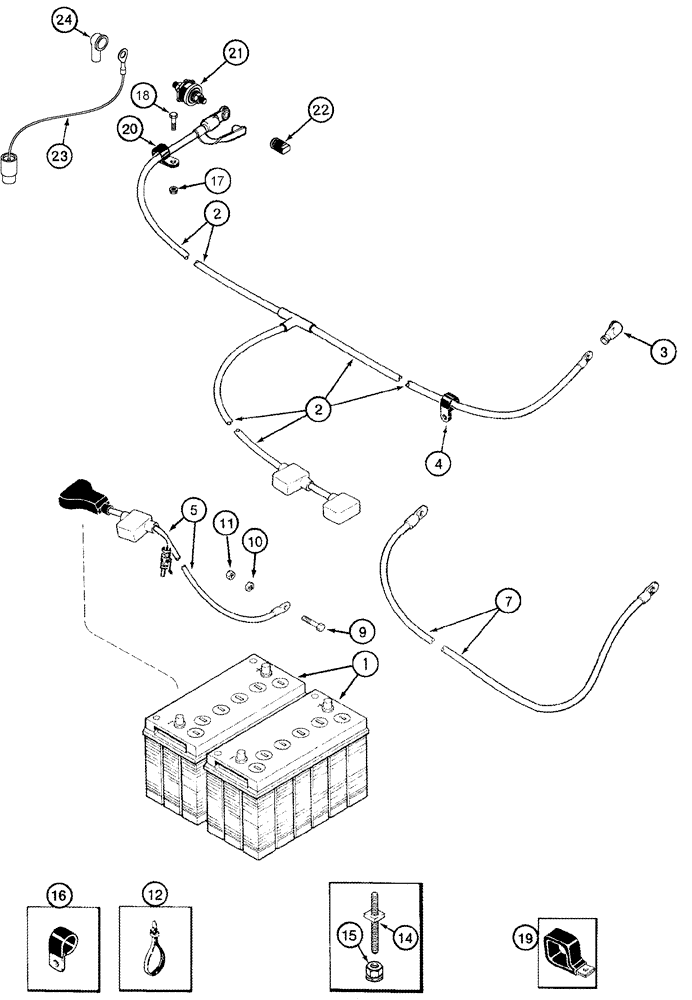

Запчасти Case IH 2388 (04-33) - BATTERY - CABLES (06) - ELECTRICAL

1

A187596

DRY BATTERY

12V

2шт.

2

87419381

POS BATTERY CABLE

1шт.

3

S115407

BOOT

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

17шт.

4

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.

5

87398398

NEG BATTERY CABLE

Ground, Cab Power

1шт.

6

278033A2

GROUND STRAP

Cab (Not Shown)

1шт.

7

128742A2

NEG BATTERY CABLE

Engine Ground

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

291207C1

CLAMP

1шт.

14

128289A1

BOLT,5/16" - 18 x 2 3/16"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

231-5146

FLANGE NUT,3/8"-16

3шт.

18

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

19

1301387C2

CLIP

2 in ID, Square

1шт.

20

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

21

190158A1

BLOCK

Junction

1шт.

22

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

23

277019A2

CABLE

Cab Power

1шт.

24

S115407

BOOT

1шт.

25

102251A1

CLIP

Clip, Battery Cable, (Not Shown)

4шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

(Not Shown)

4шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

(Not Shown)

4шт.
