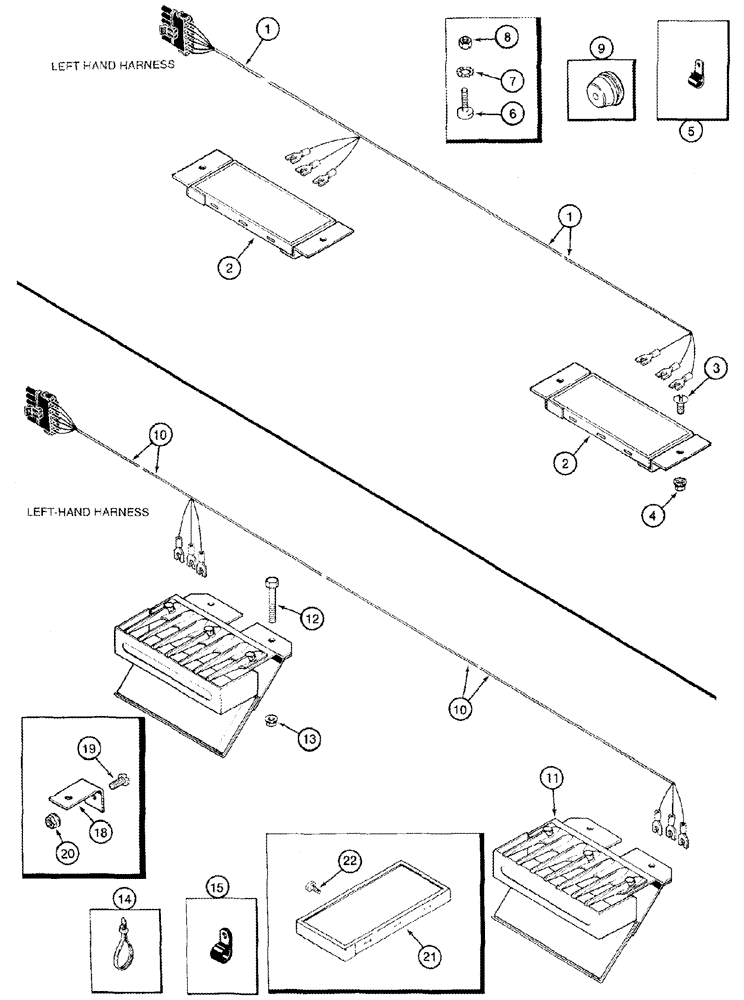

Запчасти Case IH 2388 (04-24) - HARNESS - CHAFFER AND ROTOR (06) - ELECTRICAL

1

127831A2

WIRE HARNESS

Rotor Sensor

1шт.

2

245362C1

TRANSMITTER

Inc. 21

2шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

5

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

6

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

Rotor Pad Mounting Hardware

4шт.

7

493-11014

LOCK WASHER,Ext-Int Tooth, #6

Rotor Pad Mounting Hardware

4шт.

8

225-14106

NUT,#6-32

Rotor pad mounting hardware

4шт.

9

195806C1

GROMMET

1шт.

10

92201C1

WIRE HARNESS

Chaffer Sensor

1шт.

11

245361C2

TRANSMITTER

Inc. 11A, 11B

2шт.

11a

245884C1

TRANSMITTER

(Not Shown)

1шт.

11b

231000A1

SIEVE

(Not Shown)

1шт.

12

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

15

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

15

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

2шт.

18

1301242C1

BRACKET

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

21

245884C1

TRANSMITTER

Grain Scan Sensor Block

1шт.

22

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

4шт.
