Запчасти Case IH 2388 (04-22) - POTENTIOMETER, FEEDER POSITION - MOUNTING - YIELD MONITOR (06) - ELECTRICAL

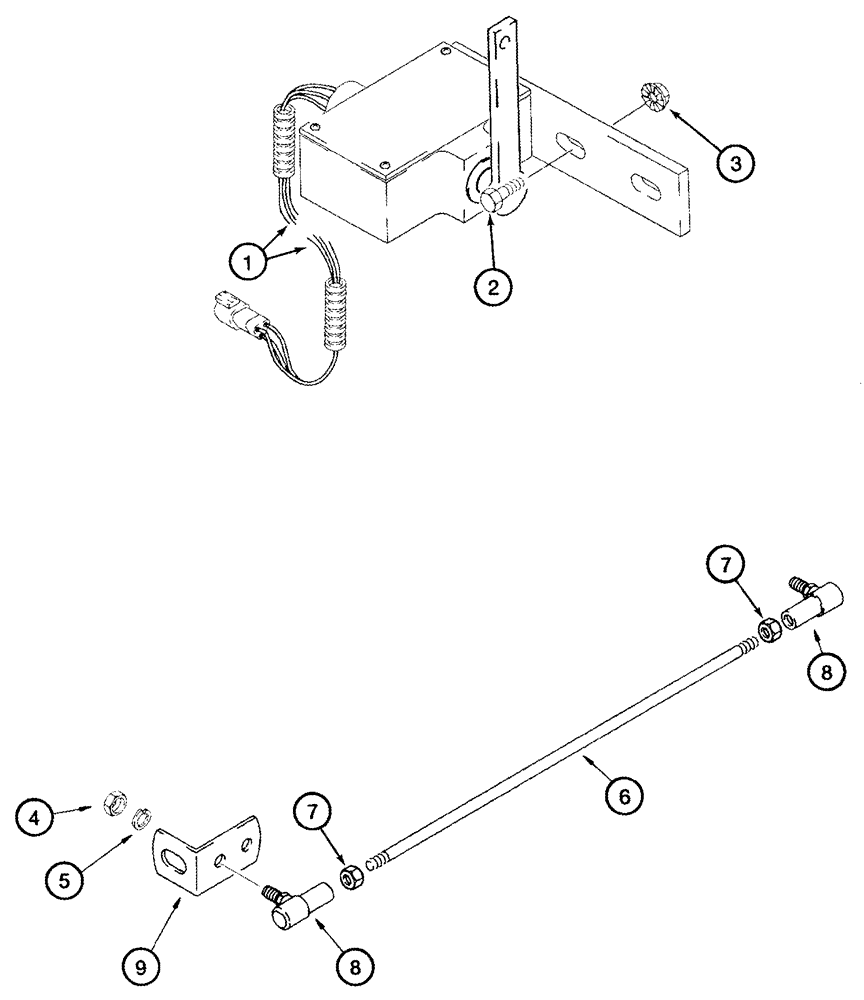

Схема запчастей Case IH 2388 - (04-22) - POTENTIOMETER, FEEDER POSITION - MOUNTING - YIELD MONITOR (06) - ELECTRICAL
8
1
8
3
7
9
4
5
7
6
2

Артикул

Название

Примечание

Количество

1

239136A1

POTENTIOMETER

Yield Monitor, Right Hand

1шт.

See Figure 04-21

1шт.

1

87315265R

REMAN-SENSOR

2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ300001, Yield Monitor, Right Hand (10/06-), Reman for New PN 239136A1

1шт.

1

87315265C

CORE-SENSOR

Return Number

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

4

425-114

NUT,1/4"-28, G5

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

301522A1

THREADED TIE-ROD

1/4 NF x 6-1/2, Inc. 7

1шт.

7

425-114

NUT,1/4"-28, G5

2шт.

8

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 NF

2шт.

9

127308A2

SUPPORT

1шт.

Выбрано товаров: 12
