Запчасти Case IH 2388 (04-14) - HARNESS, LEFT HAND SIDE (06) - ELECTRICAL

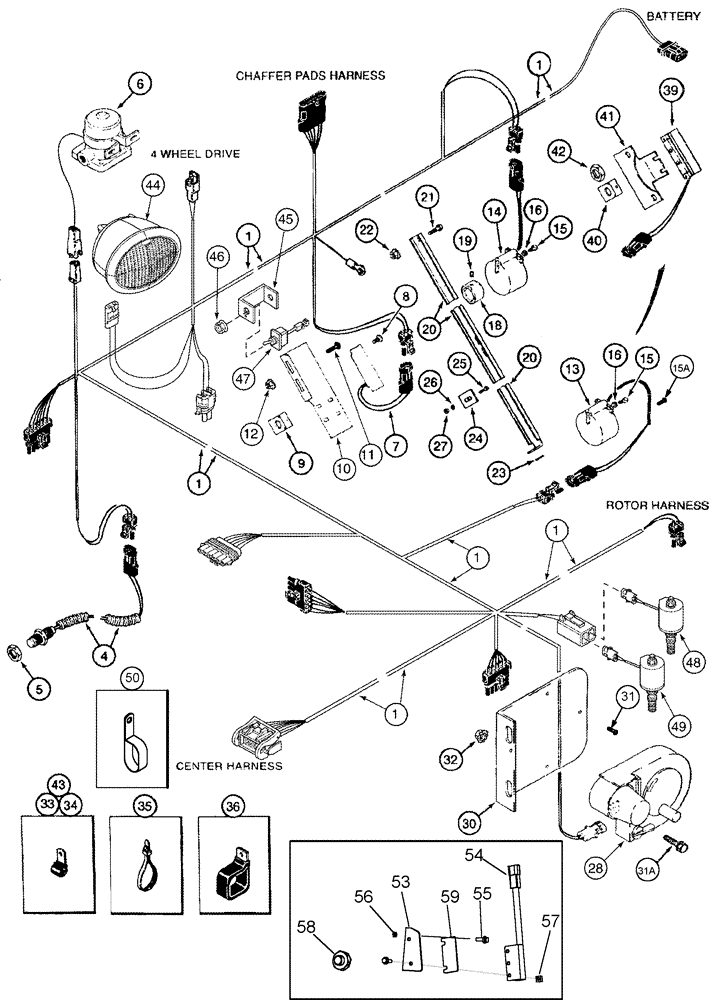

Схема запчастей Case IH 2388 - (04-14) - HARNESS, LEFT HAND SIDE (06) - ELECTRICAL
27
15a
57
15
1
1
30
10
40
45
49
48
1
11
32
44
43
59
53
36
6
14
5
31
4
58
31a
28
8
9
55
1
19
56
25
26
23
50
21
34
1
12
47
35
24
7
16
46
39
20
13
16
20
54
42
1
15
22
33
18
41

Артикул

Название

Примечание

Количество

1

87379857

WIRE HARNESS

LH Side

1шт.

2

187308A1

CAP

(Not Shown)

3шт.

3

187309A1

BAR

Splice, (Not Shown)

3шт.

4

1252494C2

TRANSMITTER

Engine RPM

1шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

6

302867A1

FUEL PUMP

Fuel

1шт.

See Figure 03-04, REF 17

1шт.

7

245364C1

SWITCH

Monitor Control, Shoe Speed

1шт.

8

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

9

187996C1

MAGNET

Shoe Sensor

1шт.

10

187998C3

BRACKET

Sensor

1шт.

11

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

1345485C3

TRANSMITTER

Beater

1шт.

14

1345482C3

TRANSMITTER

Tailings Elevator Speed

1шт.

15

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

2шт.

15a

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.

16

492-11008

LOCK WASHER,#8

4шт.

18

87431217

COLLAR,25.43mm ID x 38.1mm OD x 13.5mm W

Inc. Set Screw

1шт.

19

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

1шт.

20

116892A1

CHANNEL

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

23

495-11034

WASHER,5/16", SAE

1шт.

24

1301560C1

SUPPORT

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

26

492-11031

LOCK WASHER,5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

1шт.

28

127813A1

LAMP

Service, Left Hand, Inc. 29

1шт.

29

H40556

BULB

12V, (Not Shown)

1шт.

30

139049A2

SUPPORT

LH

1шт.

31

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

3шт.

31a

905-8020

BOLT,Hex Flg, M8 x 20mm

3шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

33

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

35

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

36

1301387C2

CLIP

2 in ID

3шт.

37

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

(Not Shown)

3шт.

38

825-5148

SERRATED NUT,M8, Flg Ser

(Not Shown)

4шт.

39

245410C1

TRANSMITTER

Straw Chopper

1шт.

40

178799C1

CLAMP,44.45mm - 63.5mm

Magnet

1шт.

Use with 245410C1

1шт.

41

144706A4

SUPPORT

1шт.

With Straw Chopper

1шт.

42

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

43

362666R1

CLIP

2шт.

44

87344596

WORK LAMP,Halogen, 12V, 37.5W, Clear

Separator

1шт.

See Figure 04-32

1шт.

45

391064A2

BRACKET

1шт.

46

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

47

391062A1

SWITCH

1шт.

48

384307A1

SOLENOID VALVE

Solenoid, Separator Clutch

1шт.

See Figure 08-28

1шт.

49

384307A1

SOLENOID VALVE

Solenoid, Unloader Clutch

1шт.

See Figure 08-28

1шт.

50

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

51

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

53

87525037

BRACKET

Ladder Switch, Start Serial: HAJ300845

1шт.

54

87391134

SWITCH

Ladder Position, Start Serial: HAJ300845

1шт.

55

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

, Start Serial: HAJ300845

4шт.

56

224-2244

, Start Serial: HAJ300845

2шт.

57

231-5344

FLANGE NUT,Flg, 1/4"-20

, Start Serial: HAJ300845

2шт.

58

87536677

SWITCH

Ladder Position Sensor, Start Serial: HAJ300845

1шт.

59

87548816

SPACER

, Start Serial: HAJ300845

1шт.
