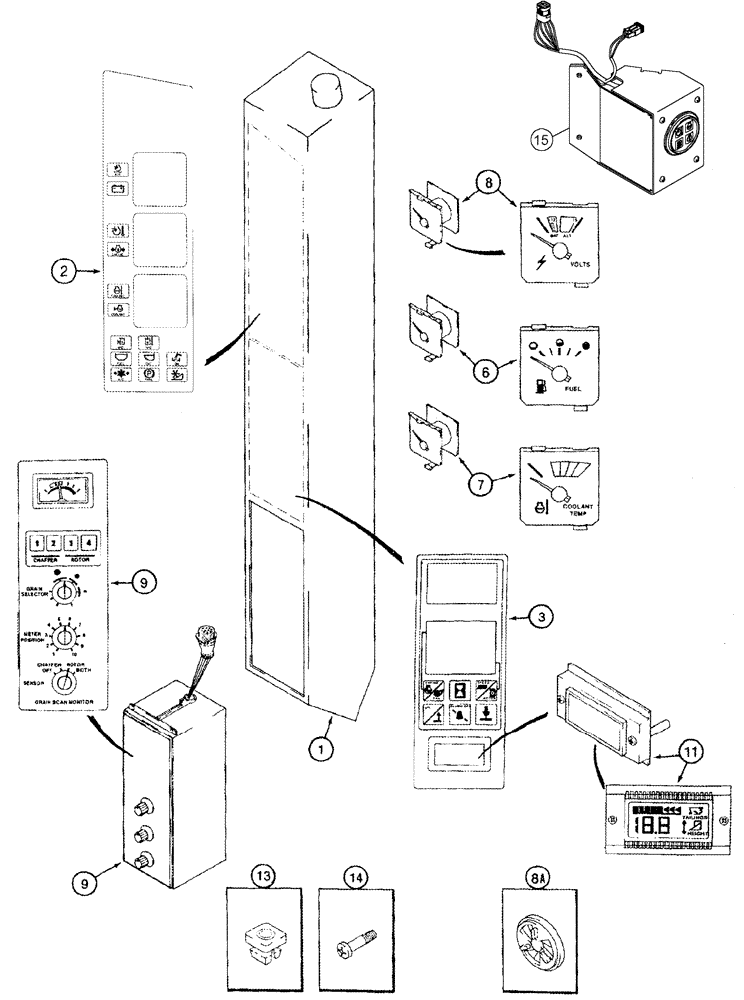

Запчасти Case IH 2388 (04-12) - INSTRUMENT PANEL ASSY (06) - ELECTRICAL

257612A2

INSTRUMENT PANEL

Inc. 1 - 8B, 11

1шт.

257612A2R

REMAN-INSTR CLUSTER

2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ300001 (10/06-), Reman for New PN 257612A2

1шт.

257612A2C

CORE-MODULE

Return Number

1шт.

84221313R

REMAN-INSTR CLUSTER

2388 (RU) ASN HAJ300001 (10/06-), Reman for New PN 257612A2

1шт.

84221313C

CORE-CLUSTER, INSTR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Panel

1шт.

2

238210A1

DECAL

Gauge And Warning

1шт.

3

123716A1

DECAL

Instrument Panel

1шт.

4

A48888

BULB

(Not Shown)

1шт.

5

121615A1

LAMP SOCKET

Inc. Bulb (Not Shown)

6шт.

6

142825A1

FUEL GAUGE

1шт.

7

142824A1

GAUGE

Coolant Temperature

1шт.

8

142828A1

VOLTMETER

Voltmeter

1шт.

8a

195359A1

SHUTTER

Audible Warning Alarm

1шт.

8b

1546441C1

BUZZER

Audible Warning Alarm (Not Shown)

1шт.

9

110862A1

CONTROL MONITOR

Grain Scan, Inc. 10

1шт.

10

A48888

BULB

(Not Shown)

1шт.

11

123715A1

DISPLAY

Height, Incl. 12

1шт.

12

121615A1

LAMP SOCKET

Inc. Bulb (Not Shown)

1шт.

13

R53000

GROMMET

2шт.

14

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.

15

200720002

KNOB

Control Monitor (Not Shown)

3шт.
