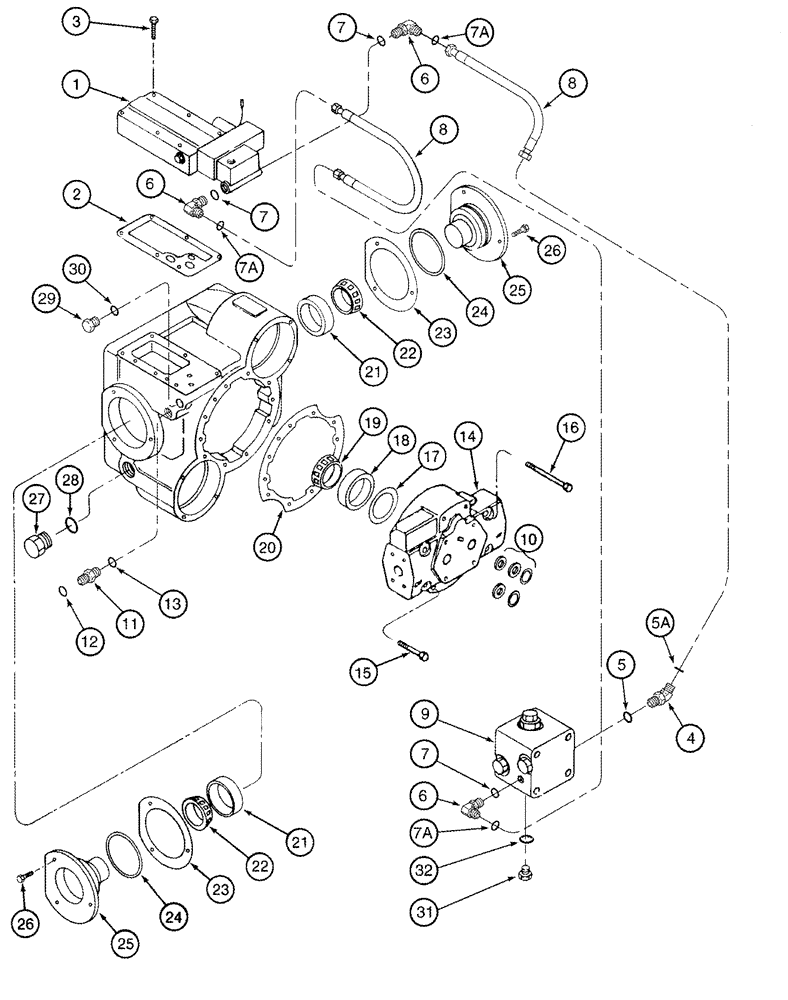

Запчасти Case IH 2388 (06-15) - MOTOR ASSY - HYDROSTATIC - TWO SPEED (03) - POWER TRAIN

400476A2

HYDROSTATIC MOTOR

89.13 cc, Includes 1 - 32, Includes Figure 06-14, Part Number Stamped On Part

1шт.

1

255825A1

REPAIR KIT

1шт.

See Figure 06-14

1шт.

2

145337C1

GASKET

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

4

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

Includes 5, 5A

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

6

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Includes 7, 7A

3шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

8

192384A1

HOSE,6.35mm ID x 255mm L

254 mm (10"), Valve to Block, One 90 Degree Hose End and One Straight Hose End

2шт.

9

193646A2

BLOCK

Relief Valve

1шт.

See Figure 06-13

1шт.

10

140747C92

SEAL KIT

1шт.

See Figure 06-12

1шт.

11

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Includes 12, 13

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Housing, End Cover

1шт.

15

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

16

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

142398C91

SHIM KIT

Includes 17

1шт.

17

NSS

NOT SOLD SEPARAT

.003", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.015", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.020", Shim

1шт.

17

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

18

530741R1

BEARING CUP

2-17/32" OD, Output Shaft

1шт.

19

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16" ID, Output Shaft

1шт.

20

92741C2

GASKET,0.38mm Thk

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing, Cup, Trunnion

2шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Cone, Trunnion

2шт.

142386C91

SHIM KIT

Includes 23

1шт.

23

NSS

NOT SOLD SEPARAT

.002", Shim

6шт.

23

NSS

NOT SOLD SEPARAT

.005", Shim

4шт.

23

NSS

NOT SOLD SEPARAT

.010", Shim

4шт.

23

NSS

NOT SOLD SEPARAT

.015", Shim

4шт.

23

NSS

NOT SOLD SEPARAT

.025", Shim

4шт.

24

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

25

NSS

NOT SOLD SEPARAT

Trunnion, Motor

2шт.

26

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

6шт.

27

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

278548

PLUG,Hex, 7/16"-20 ORB

Incl 30

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

9672438

PLUG,7/16" - 20 ORB

Incl. 32

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
