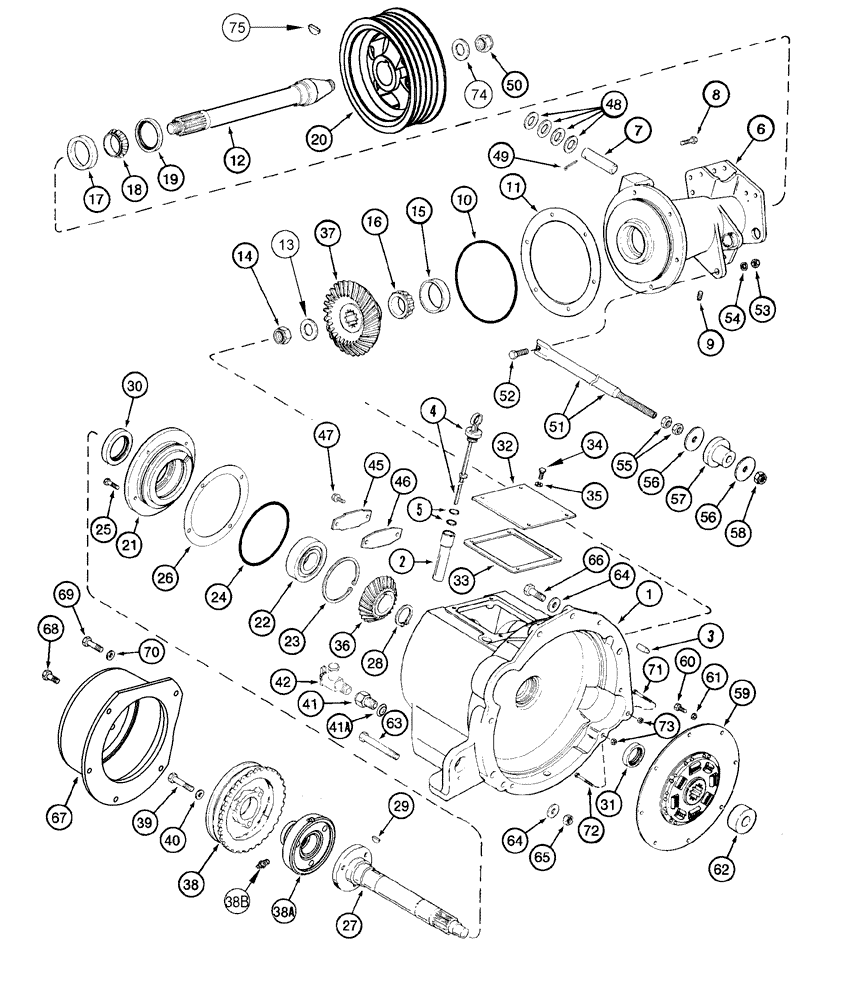

Запчасти Case IH 2388 (06-01) - POWER TAKEOFF DRIVE (03) - POWER TRAIN

365420A1

GEARBOX

Includes 1 - 19, 21 - 42

1шт.

87642678R

REMAN-GEARBOX

Reman Gearbox For New P/N 365420A1, 2388 BTW HAJ292001 & HAJ300000

1шт.

87642678C

CORE-GEARBOX

Return Number

1шт.

1

255400A2

HOUSING

Power Takeoff (PTO) Drive, Includes 2, 3

1шт.

2

188072C1

TUBE,25.4 mm OD, 127 mm Length

1шт.

3

1330136C1

DOWEL

2шт.

4

186019C91

DIPSTICK

Includes 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

364578A1

HOUSING

Separator Drive, Includes 6, 7

1шт.

6

364406A1

HOUSING

1шт.

7

195439C2

PIN,25.29mm OD x 101.6mm L

Clutch Housing

1шт.

8

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

9

50057K

PLUG

Separator Housing

1шт.

10

238-6266

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

1шт.

188195C1

SHIM KIT

Includes 11, Separator Drive Housing

1шт.

11

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

11

NSS

NOT SOLD SEPARAT

.007", Shim

1шт.

11

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

11

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

12

362722A1

SHAFT

Pulley, Separator Drive

1шт.

13

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.

14

371747A1

LOCK NUT

1-1/4" NF

1шт.

15

A75210

BEARING CUP,3.5433" OD x 0.9055"

1шт.

16

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

1шт.

17

376463C1

BEARING CUP

3-1/4" OD

1шт.

18

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

1шт.

19

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

Oil, Separator Housing

1шт.

20

364019A2

PULLEY,289.6mm OD

11" OD, Drive

1шт.

21

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

Drive Shaft Bearing Housing

1шт.

22

1541766C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

4-23/32" OD, Drive Shaft, Standard

1шт.

23

100-22475

SNAP RING,4.78", Int, #475

1шт.

24

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

25

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

188196C1

SHIM KIT

Includes 26, PTO Drive Shaft Housing

1шт.

26

NSS

NOT SOLD SEPARAT

.030", Shim

1шт.

26

NSS

NOT SOLD SEPARAT

.010", Shim

1шт.

26

NSS

NOT SOLD SEPARAT

.007", Shim

1шт.

26

NSS

NOT SOLD SEPARAT

.005", Shim

1шт.

27

192816C2

SHAFT

1шт.

28

100-12200

SNAP RING,#200, Ext

1шт.

29

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

1шт.

30

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

3-5/8" OD, Pump Housing End

1шт.

31

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

2-5/8" OD, Drive Plate End

1шт.

32

192275C1

COVER

1шт.

33

191830C2

GASKET

1шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

35

492-11038

LOCK WASHER,3/8"

4шт.

364579A1

GEAR SET

Includes 36, 37, Separator Drive, Matched Set

1шт.

36

NSS

NOT SOLD SEPARAT

31T, Gear

1шт.

37

NSS

NOT SOLD SEPARAT

41T, Gear

1шт.

38

1330488C1

PULLEY

8.85 OD, Drive, Auxiliary Pump

1шт.

Also See Figure 08-08, For Hub

1шт.

38a

196482C3

HUB

Drive Pulley

1шт.

38b

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

39

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

40

495-11053

WASHER,1/2", SAE

3шт.

41

280482A1

ADAPTER

1-5/16" PT x 3/8" fem, Includes 41A

1шт.

41a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

42

301803R1

SHUT-OFF VALVE

PTO Drain

1шт.

45

185056C1

COVER

Bolt Access Hole

1шт.

46

185057C2

GASKET,0.91mm Thk

1шт.

47

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

48

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

4шт.

49

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

50

371747A1

LOCK NUT

1-1/4"

1шт.

51

1315648C1

ROD

1шт.

52

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

53

425-108

NUT,1/2" - 13, Gr 5

1шт.

54

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

55

425-1510

JAM NUT,Jam, 5/8"-18, G5

2шт.

56

107813R1

WASHER

21/32" x 2-1/2" x 11/64"

2шт.

57

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

1шт.

58

231-46110

LOCK NUT,5/8"-18, GB

1шт.

59

184429C2

CLUTCH DISC,352.4mm OD

CLUTCH DISK PTO Drive

1шт.

59

184429C2R

REMAN-CLUTCH DISC

2388 BTW HAJ292001 & HAJ300000 (10/04-)

1шт.

59

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

60

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

61

492-21038

LOCK WASHER,3/8"

8шт.

62

1324896C2

BUSHING,29.99mm ID x 71.98mm OD x 27mm L

Flywheel, Power Takeoff

1шт.

63

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.

64

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

6шт.

65

425-1010

NUT,5/8"-11, G5

4шт.

66

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

67

1303141C3

HOUSING

Hydrostatic Pump

1шт.

68

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

69

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

70

283856C1

WASHER

17/32" x 1" x 3/16"

2шт.

71

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

72

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

1шт.

73

425-106

NUT,3/8"-16, Cl 5

2шт.

74

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.

75

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.
