Запчасти Case IH 2388 (03-13) - FUEL, DRAIN - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (02) - FUEL SYSTEM

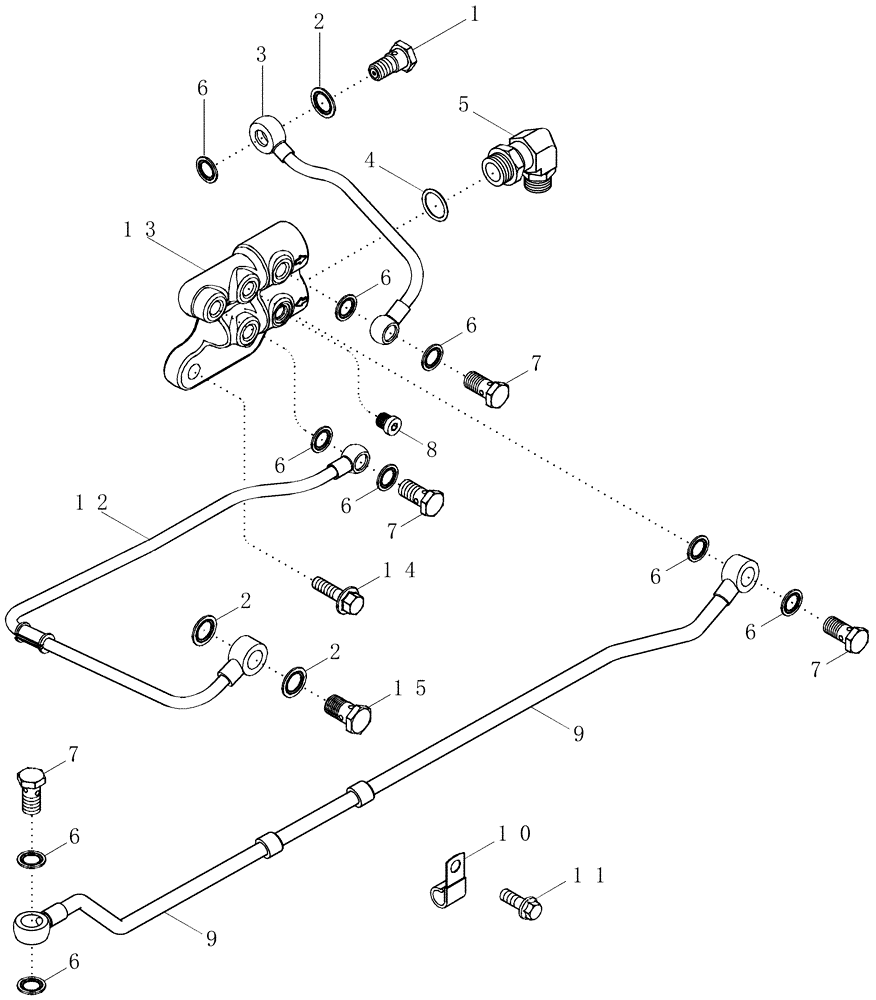

Схема запчастей Case IH 2388 - (03-13) - FUEL, DRAIN - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (02) - FUEL SYSTEM
7
6
7
13
6
6
11
2
6
9
7
6
12
7
6
3
2
6
6
10
2
8
9
6
14
1
4
15
5

Артикул

Название

Примечание

Количество

1

87346562

CHECK VALVE,M12 x 1.5

1шт.

2

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

3шт.

3

87350046

FUEL TUBE,0.31" OD

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

1шт.

6

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

9шт.

7

J903035

BANJO BOLT

M12 x 1.50 x 24

1шт.

8

J678923

PLUG,M10 x 1

10 mm

1шт.

9

87350033

FUEL TUBE

1шт.

10

87350023

CLIP

1шт.

11

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

12

87350034

FUEL TUBE,0.31" OD

1шт.

13

87350030

CONNECTING BLOCK

1шт.

14

87349727

BOLT

M10 x 1.50 x 35

2шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

M14 x 1.50 x 26

1шт.

Выбрано товаров: 15
