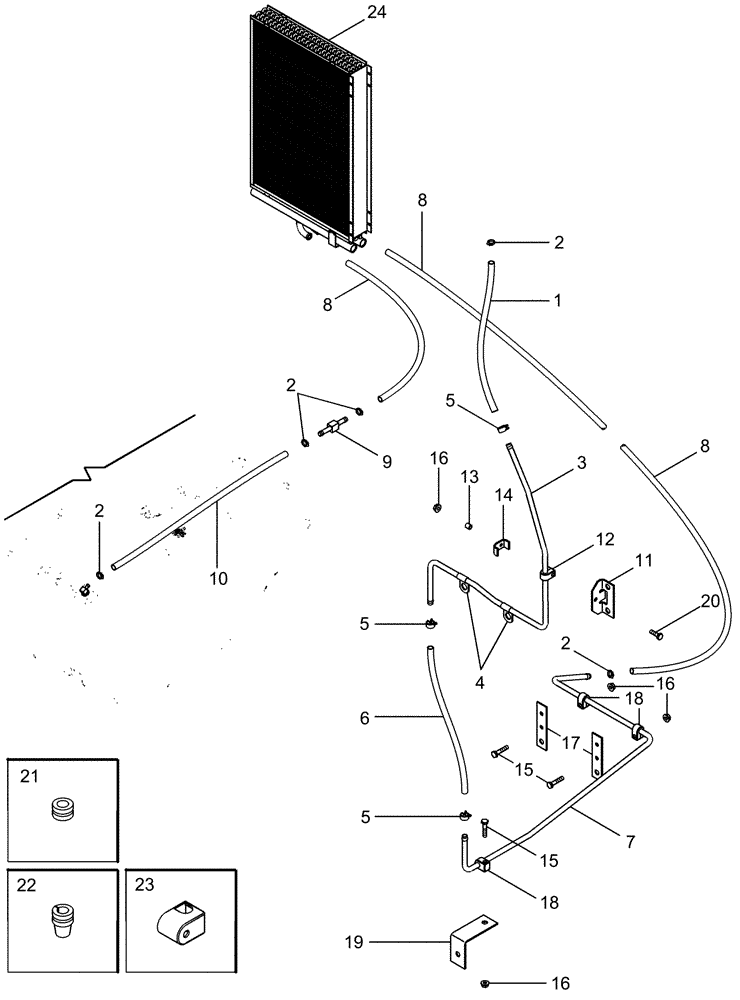

Запчасти Case IH 2388 (03-12) - FUEL, RETURN (02) - FUEL SYSTEM

1

390653A1

FUEL HOSE,9.53 mm ID x 191.00 mm

Cut from S118400

1шт.

2

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

5шт.

3

426604A2

FUEL TUBE

1шт.

4

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

5

1348264C1

HOSE CLAMP

3/8" ID

3шт.

6

87421440

HOSE

124 mm (4-7/8"), Cut from S118400

1шт.

7

87404417

FUEL TUBE,.375" OD

, Serial Range: -HAJ0295001

1шт.

7

87323591

FUEL TUBE,0.375" OD

, Start Serial: HAJ0295001

1шт.

All CIS Markets

1шт.

8

86989651

FUEL HOSE

1170 mm (46"), Cut from S118400

2шт.

9

87405016

FITTING

Connector

1шт.

10

87404885

FUEL HOSE,9.53 mm ID x 1250.00 mm

Cut from S118400

1шт.

11

409390A2

BRACKET

1шт.

12

449127A1

CLAMP

3/8" ID

1шт.

13

418785A1

SPACER

1шт.

14

449128A1

CLAMP,20mm ID

1шт.

15

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

16

231-5344

FLANGE NUT,Flg, 1/4"-20

3шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

17

87404841

SUPPORT

2шт.

18

236558A1

CLAMP

3шт.

19

178950C2

ANGLE

1шт.

20

326-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

1шт.

21

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2" ID

2шт.

22

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1"

1шт.

23

196447C1

CLAMP

1/2 Tube

1шт.
