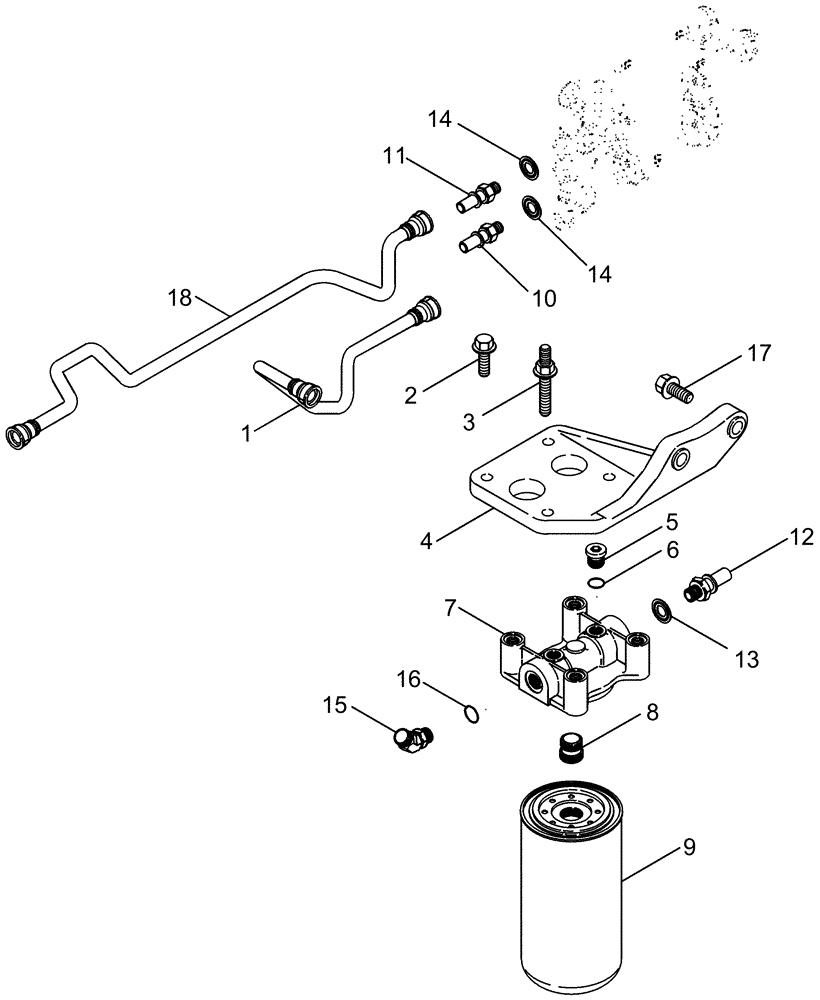

Запчасти Case IH 2388 (03-11) - FUEL FILTER, ENGINE - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (02) - FUEL SYSTEM

87349746

FILTER ASSY

Fuel, Includes 1, 2, 3, 6

1шт.

1

87351057

FUEL TUBE,0.63" OD

Upper Supply

1шт.

2

87349737

BOLT

2шт.

3

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

4

87349731

SUPPORT

1шт.

5

J678923

PLUG,M10 x 1

10 mm, Includes 4

2шт.

6

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

7

87349758

FILTER HEAD

1шт.

8

87349753

ADAPTER

1шт.

9

87360565

FUEL FILTER

1шт.

10

87351059

ADAPTER

1шт.

11

87351058

ADAPTER

1шт.

12

87349484

ADAPTER

1шт.

13

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

1шт.

14

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

2шт.

15

311214A1

ADAPTER

Includes 11

1шт.

16

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

17

87349727

BOLT

2шт.

18

87341277

FUEL TUBE

Lower Supply

1шт.
