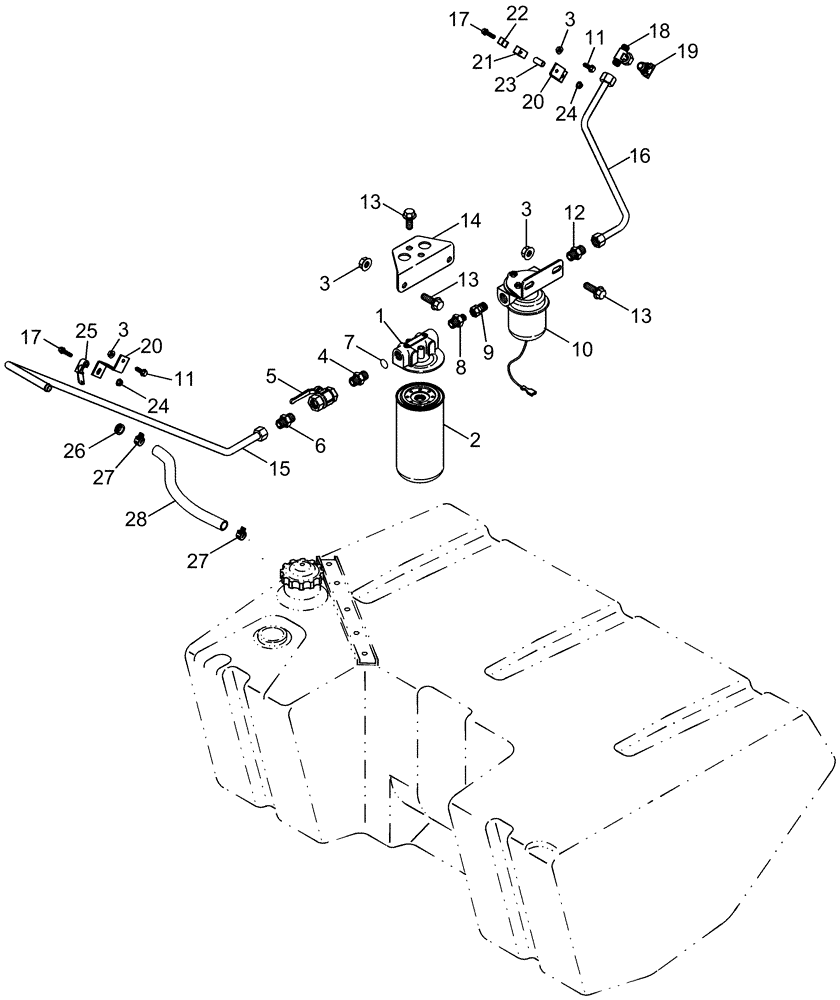

Запчасти Case IH 2388 (03-10) - FUEL, SUPPLY - ASN HAJ0295001 AND ALL CIS MARKETS (02) - FUEL SYSTEM

1

87302103

FILTER ASSY

Fuel, Includes 2

1шт.

2

87307432

FUEL FILTER

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

4

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1/2 PT x 5/8 Tube

1шт.

5

1345205C1

SHUT-OFF VALVE

1шт.

6

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1/2 PT x 1/2 or, Includes 11

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

5/8 inv fl x 3/8 PT

1шт.

9

218-959

HYD CONNECTOR,37 Degree, Sw, 9/16"-18, Fem x 9/16"-18 NPT, Male, Brass

1шт.

10

87307545

FUEL PUMP

Fuel Lift

1шт.

11

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

12

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

3/8 Tube

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

14

87311131

BRACKET

Fuel Filter

1шт.

15

87305320

FUEL TUBE,12.70 mm OD x 118.00, 635.49 mm L

Supply Tank

1шт.

16

87305323

FUEL TUBE,0.375" OD

Fuel

1шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

18

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

3/8 x 3/8 x 1/4 PT

1шт.

19

86982771

VALVE

1/4" PT, Drain Cock

1шт.

20

87311456

BRACKET

Fuel Line Supply

1шт.

21

449127A1

CLAMP

Tube

1шт.

22

449128A1

CLAMP,20mm ID

Tube Clamp

1шт.

23

418785A1

SPACER

Tube Clamp

1шт.

24

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

25

196447C1

CLAMP

Tube

1шт.

26

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

27

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

28

364782A1

FUEL HOSE

Inlet

1шт.
