Запчасти Case IH 2388 (02-46) - KIT ENGINE OVERHAUL (01) - ENGINE

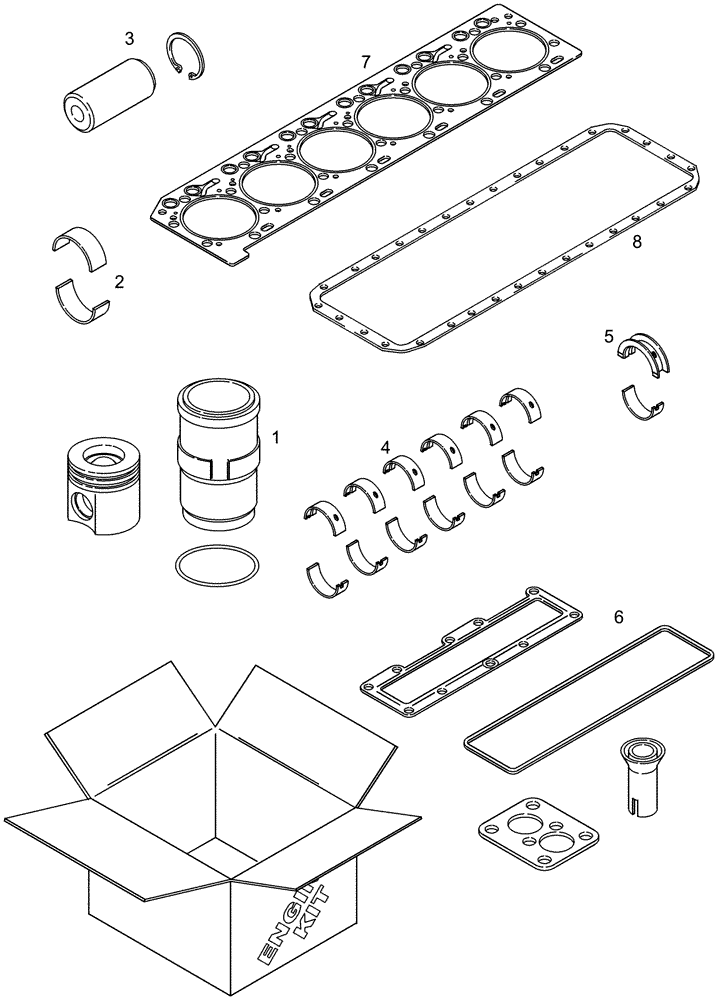

Схема запчастей Case IH 2388 - (02-46) - KIT ENGINE OVERHAUL (01) - ENGINE
4
7
3
6
5
8
2
1

Артикул

Название

Примечание

Количество

A78017

REPAIR KIT

Engine Overhaul, Includes 1 - 7, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

87348859

ENGINE OVERHAUL KIT

Includes 1 - 5 and Ref 7, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

1

A77912

PACKAGE, REPAIR

Piston & Sleeve, Serial Range: -HAJ0295001

6шт.

See Figure 02-38

1шт.

All CIS Markets

1шт.

1

87343262

KIT

Piston & Sleeve, Start Serial: HAJ0295001

6шт.

See Figure 02-38

1шт.

Except All CIS Markets

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-38

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston, Serial Range: -HAJ0295001

6шт.

See Figure 02-38

1шт.

All CIS Markets

1шт.

3

87342670

PISTON PIN

Piston, Start Serial: HAJ0295001

6шт.

See Figure 02-38

1шт.

Except All CIS Markets

1шт.

4

J945930

BEARING SET

Main, Standard

6шт.

See Figure 02-37

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-37

1шт.

6

A78042

KIT

Valve Grind, Serial Range: -HAJ0295001

1шт.

See Figure 02-43

1шт.

All CIS Markets

1шт.

6

87348974

GASKET KIT

Valve Grind, Tier III, Start Serial: HAJ0295001

1шт.

See Figure 02-44

1шт.

Except All CIS Markets

1шт.

7

J943366

CYLINDER HEAD GASKET,2.11mm Thk

, Serial Range: -HAJ0295001

1шт.

See Figure 02-30

1шт.

All CIS Markets

1шт.

7

87344132

CYLINDER HEAD GASKET

, Start Serial: HAJ0295001

1шт.

See Figure 02-31

1шт.

Except All CIS Markets

1шт.

8

J938160

OIL PAN GASKET SET

Oil Pan, Serial Range: -HAJ0295001

1шт.

See Figure 02-26

1шт.

All CIS Markets

1шт.

8

87308050

GASKET,0.95mm Thk

Oil Pan, Start Serial: HAJ0295001

1шт.

See Figure 02-26

1шт.

Except All CIS Markets

1шт.

Выбрано товаров: 40
