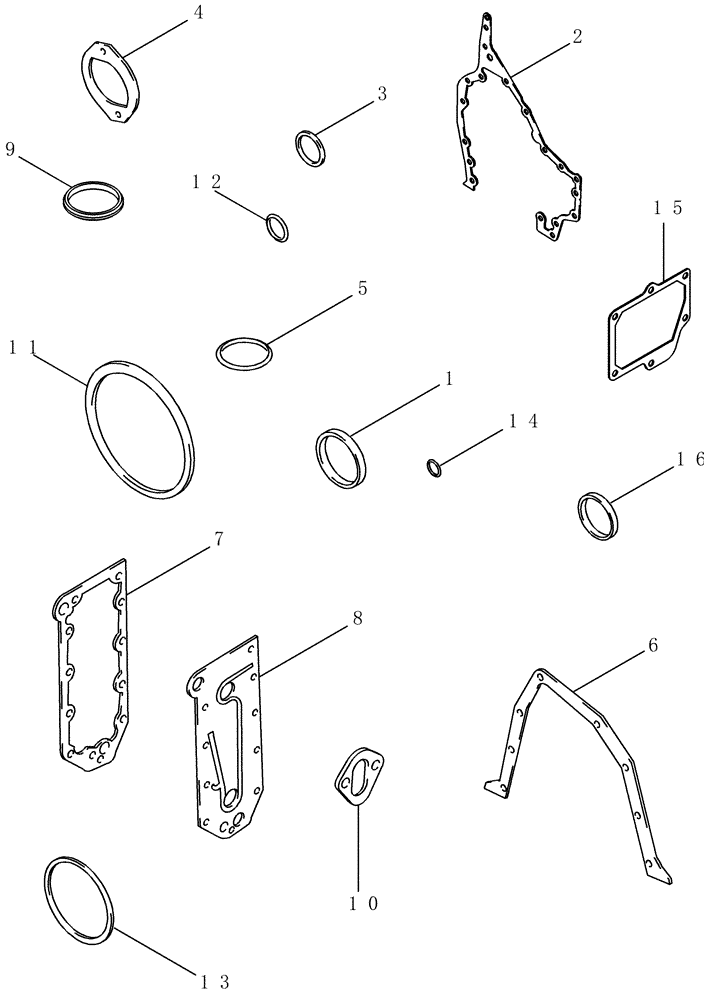

Запчасти Case IH 2388 (02-42) - GASKET KIT - CYLINDER BLOCK (01) - ENGINE

87416435

GASKET KIT

Cylinder Block, 6TAA-830, Tier 2 Engines, Includes 1 - 16

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Cover

1шт.

2

J944293

GASKET,1.01mm Thk

Gear Housing, Shown

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Timing Pin Housing

1шт.

4

J938655

GASKET,1.27mm Thk

Hydraulic Pump

1шт.

5

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

6

87447962

GASKET,0.8mm Thk

Rear Cover

1шт.

7

J918174

GASKET,0.71mm Thk

Oil Cooler

1шт.

8

J4063496

GASKET,0.8mm Thk

Oil Cooler Cover

1шт.

9

J924605

SEAL

Seal, Injection Pump to Gear Housing

1шт.

10

J939258

GASKET,1.21mm Thk

Lift Pump

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Rear Seal Cover

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Barring Hole Plug

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

, Serial Range: Sleeve-Block

6шт.

14

J913994

O-RING

Timing Pin

1шт.

15

87436828

GASKET

Breather, Shown

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Lube Oil Supply

1шт.

17

J900830

O-RING

Seal, Not Shown

1шт.
