Запчасти Case IH 2388 (02-38) - PISTONS - CONNECTING RODS (01) - ENGINE

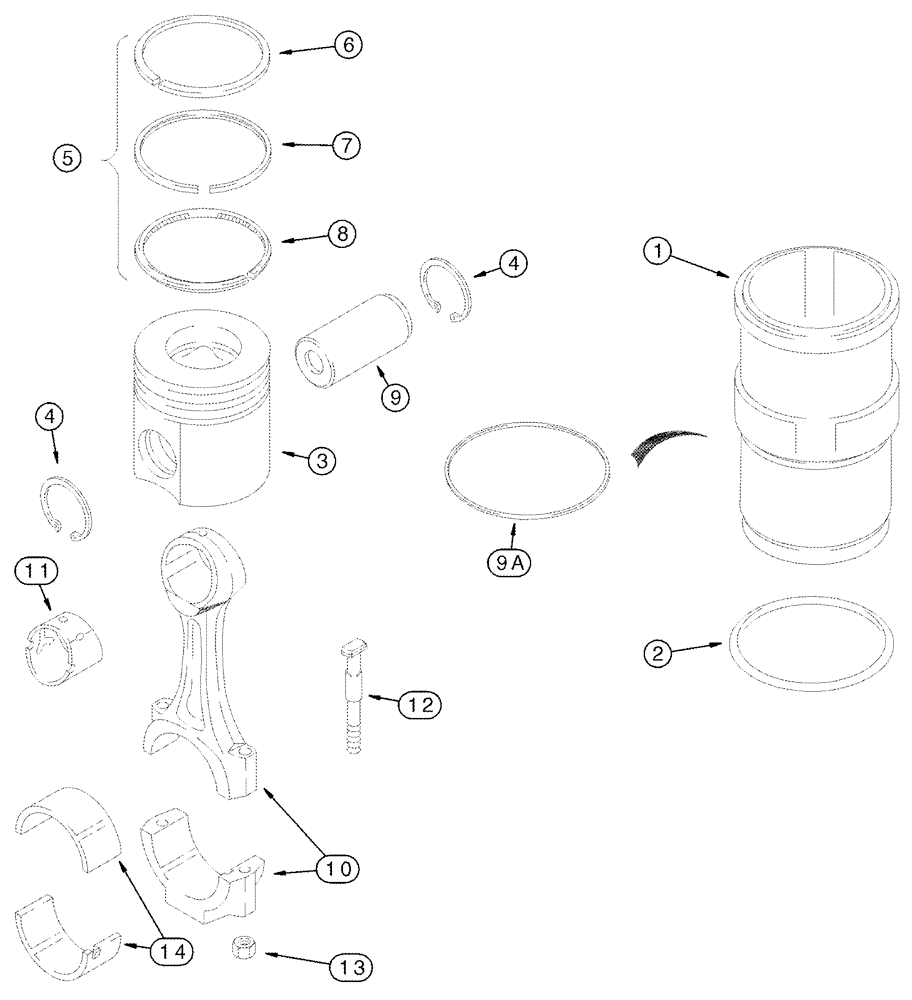

Схема запчастей Case IH 2388 - (02-38) - PISTONS - CONNECTING RODS (01) - ENGINE
1
8
9a
3
4
9
11
12
2
5
14
7
13
10
4
6

Артикул

Название

Примечание

Количество

A77912

PACKAGE, REPAIR

Piston & Sleeve, Standard, Includes 1 - 8, Serial Range: -HAJ0295001

6шт.

All CIS Markets

1шт.

87343262

KIT

Piston & Sleeve, Standard, Includes 1 - 8, Start Serial: HAJ0295001

6шт.

Except All CIS Markets

1шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

A77853

PISTON & RINGS KIT

Includes 3 - 8, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

87378369

PISTON & RINGS KIT

Includes 3 - 8, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

Includes 6 - 8, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

5

87343194

PISTON RINGS KIT

Includes 6 - 8, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

, Serial Range: -HAJ0295001

6шт.

All CIS Markets

1шт.

9

87342670

PISTON PIN

, Start Serial: HAJ0295001

6шт.

Except All CIS Markets

1шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

JR901383

REMAN-CONNECTING ROD

Remanufactured, Only for N.A., Serial Range: -HAJ0295001

6шт.

All CIS Markets

1шт.

87342978

REMAN-CONNECTING ROD

Remanufactured, Only for N.A., Start Serial: HAJ0295001

6шт.

Except All CIS Markets

1шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

87342975

CORE-ROD CONNECTING

CORE-CONNECTING ROD, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

J901383

CONNECTING ROD

Includes 10 - 13, Serial Range: -HAJ0295001

6шт.

All CIS Markets

1шт.

84487529R

REMAN-CONNECTING ROD

2388 BTW HAJ292001 & HAJ300000, Serial Range: -HAJ0295001 (10/04-), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

87342865

CONNECTING ROD

Includes 10 - 13, Start Serial: HAJ0295001

6шт.

Except All CIS Markets

1шт.

84487529R

REMAN-CONNECTING ROD

2388 BTW HAJ292001&HAJ300000, Start Serial HAJ0295001 (11/04-), Reman for New P/N 87342865

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

11

87343250

BUSHING,45.03mm ID x 49mm OD x 43mm L

, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

12

J928870

ROD

2шт.

13

J934864

NUT

2шт.

14

87443389

BEARING LINER

Kit, Standard

6шт.

14

87443529

BEARING LINER

Kit, Undersize .25 mm

6шт.

14

87443532

BEARING LINER

Kit, Undersize .50 mm

6шт.

14

87443533

BEARING LINER

Kit, Undersize .75 mm

6шт.

14

87443534

BEARING LINER

Kit, Undersize 1.00 mm

6шт.

Выбрано товаров: 56
