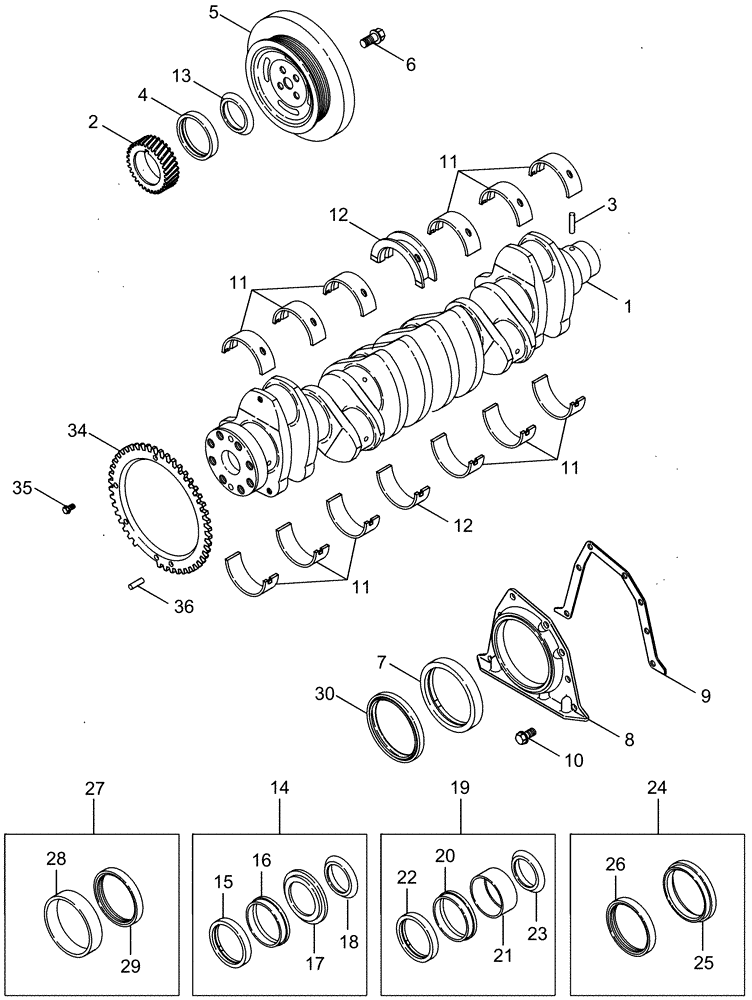

Запчасти Case IH 2388 (02-37) - CRANKSHAFT (01) - ENGINE

JR918986

REMAN-CRANKSHAFT

Only For N.A., Order J918986, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

87342925

REMAN-CRANKSHAFT

Only For N.A., Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

87335716R

REMAN-CRANKSHAFT

2388 BTW HAJ292001 & HAJ300000, Start Serial: HAJ02095001 (10/04-), Reman for New P/N 87342925

1шт.

87335716C

CORE-CRANKSHAFT

Return Number

1шт.

JC918986

CORE-CRANKSHAFT

, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

87337253

CORE-CRANKSHAFT

, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

1

J918986

CRANKSHAFT

Includes 2, 3, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

1

87335711

CRANKSHAFT

With Speed Indicator Ring, Includes 34, 35, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

87335716R

REMAN-CRANKSHAFT

2388 BTW HAJ292001 & HAJ300000, Start Serial: HAJ02095001 (10/04-), Reman for New P/N 87335711

1шт.

87335716C

CORE-CRANKSHAFT

Return Number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790, Ref. 14

1шт.

5

J925570

DAMPER

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486, Ref. 24

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10,9

8шт.

11

J945930

BEARING SET

Main, Standard

6шт.

11

J945931

BEARING SET

Main, Undersize .25 mm

6шт.

11

J945932

BEARING SET

Main, Undersize .50 mm

6шт.

11

J945933

BEARING SET

Main, Undersize .75 mm

6шт.

11

J945934

BEARING SET

Main, Undersize 1.00 mm

6шт.

12

J945929

THRUST BEARING

Thrust, Standard

1шт.

12

J945922

THRUST BEARING

Thrust, Undersize .25 mm

1шт.

12

J945923

THRUST BEARING

Thrust, Undersize .50 mm

1шт.

12

J945924

THRUST BEARING

Thrust, Undersize .75 mm

1шт.

12

J945925

THRUST BEARING

Thrust, Undersize 1.00 mm

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize .25 mm

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize .50 mm

1шт.

12

J945928

THRUST BEARING

Thrust, Undersize .50 mm, Oversize .50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790, Ref. 14

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Includes 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Includes 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Includes 24A, 25, 26

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool, Not Illustrated

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

NSS

NOT SOLD SEPARAT

Seal

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Includes 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

30

87423334

SEAL,129.5mm ID x 148.45mm OD x 6.5mm Thk

Dust, Serial Range: -HAJ0295001

1шт.

All CIS Markets

1шт.

30

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

Dust, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

87444550

KIT

Dust Excluder, Includes 31-33, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

31

NSS

NOT SOLD SEPARAT

Slinger, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

32

NSS

NOT SOLD SEPARAT

Spacer, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

33

NSS

NOT SOLD SEPARAT

Instructions, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

34

87335719

RING

Speed Indicator, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.

35

87335729

BOLT

M6 x 1 x 12, Start Serial: HAJ0295001

4шт.

Except All CIS Markets

1шт.

36

J329899

DOWEL,5.01mm OD x 10mm L

, Start Serial: HAJ0295001

1шт.

Except All CIS Markets

1шт.
