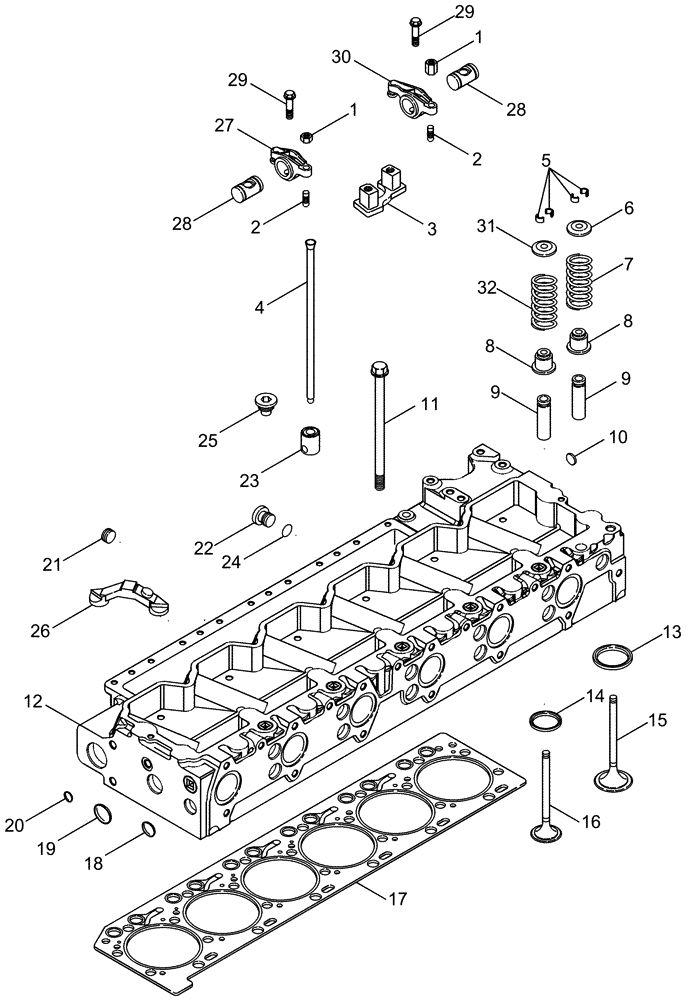

Запчасти Case IH 2388 (02-31) - CYLINDER HEAD - VALVE MECHANISM - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (01) - ENGINE

87351061

CYLINDER HEAD

With Valves, Includes 1 - 18

1шт.

84283167R

REMAN-CYLINDER HEAD

2388, Asn HAJ295001, Reman For New P/N 87351061

1шт.

84283167C

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

A77902

NUT

3/8"-24 NF

1шт.

2

NSS

NOT SOLD SEPARAT

Insert

1шт.

3

J941140

SUPPORT

6шт.

4

87435955

PUSH ROD

12шт.

5

J900250

SCREW

Collet

48шт.

6

87351062

VALVE

Rotator

12шт.

7

87351063

VALVE SPRING

12шт.

8

87352235

SEAL

12шт.

9

J948102

VALVE GUIDE

24шт.

10

J945093

PLUG

1шт.

11

87344079

PLUG

6шт.

12

NSS

NOT SOLD SEPARAT

HEAD ASSY, Stripped

1шт.

13

J940152

INSERT

Intake

12шт.

14

87344002

INSERT

Exhaust

12шт.

15

87343688

STD INLET VALVE

STD ENGINE INLET VALVE Inlet

12шт.

16

87343693

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Exhaust

12шт.

17

87344132

CYLINDER HEAD GASKET

1шт.

18

A77590

PLUG

2шт.

19

87344118

PLUG

Expansion

1шт.

20

87344108

PLUG

1шт.

21

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

22

J678923

PLUG,M10 x 1

10 mm

1шт.

23

87435851

TAPPET

12шт.

24

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

25

87435854

GUIDE

12шт.

26

J943445

CROSSBAR

12шт.

27

87435953

ROCKER ARM

6шт.

28

87435951

SHAFT

6шт.

29

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

12шт.

30

87435952

ROCKER ARM

6шт.

31

J944452

RETAINER

12шт.

32

J944711

VALVE SPRING

12шт.

33

87344126

BOLT

M14 x 160

26шт.
