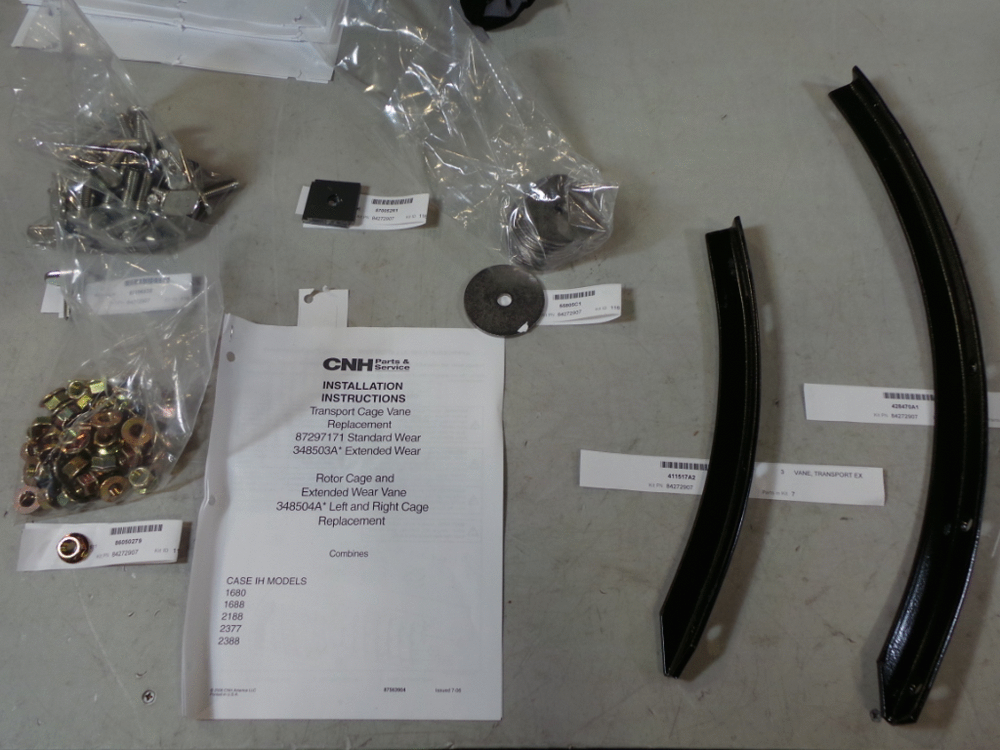

Запчасти Case IH 2388 (88.061.25) - KIT CAGE VANES STANDARD WEAR W/ HARDWARE (88) - ACCESSORIES

1

84272907

SERVICE KIT

Incl 2 - 8

1шт.

2

87563904

INSTRUCTION

1шт.

3

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

2шт.

4

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

10шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

46шт.

6

87106338

BOLT

46шт.

7

411517A2

STIFFENER

SHORT

3шт.

8

428470A1

STIFFENER

LONG

13шт.
