(02-29) - CRANKCASE, BREATHER - ASN HAJ0295001 EXCEPT ALL CIS MARKETS

Запчасти Case IH 2388 (02-29) - CRANKCASE, BREATHER - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (01) - ENGINE

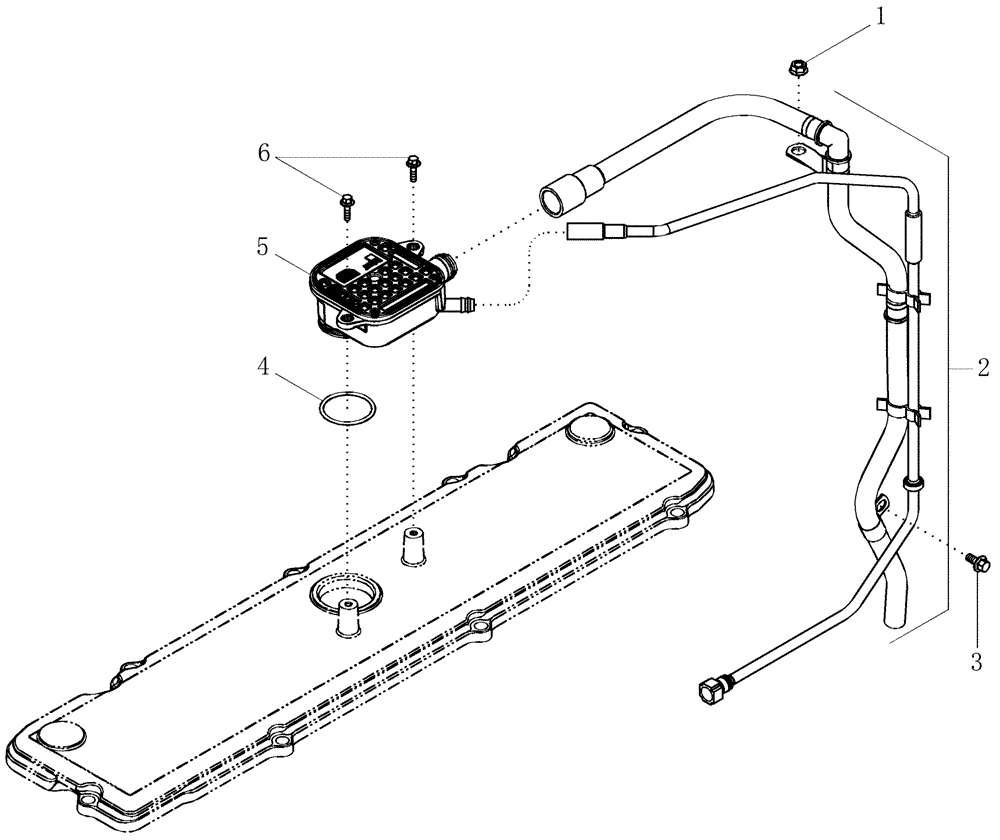

Схема запчастей Case IH 2388 - (02-29) - CRANKCASE, BREATHER - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (01) - ENGINE
5
4
3
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J900589

NUT

M8 x 1.25

1шт.

2

87338653

TUBE

Lub Oil Drain

1шт.

3

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16:10.9

1шт.

4

87338651

O-RING,0.139" Thk x 1.859" ID, -225

1шт.

5

87338649

BREATHER

Includes Ref. 4

1шт.

6

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.
