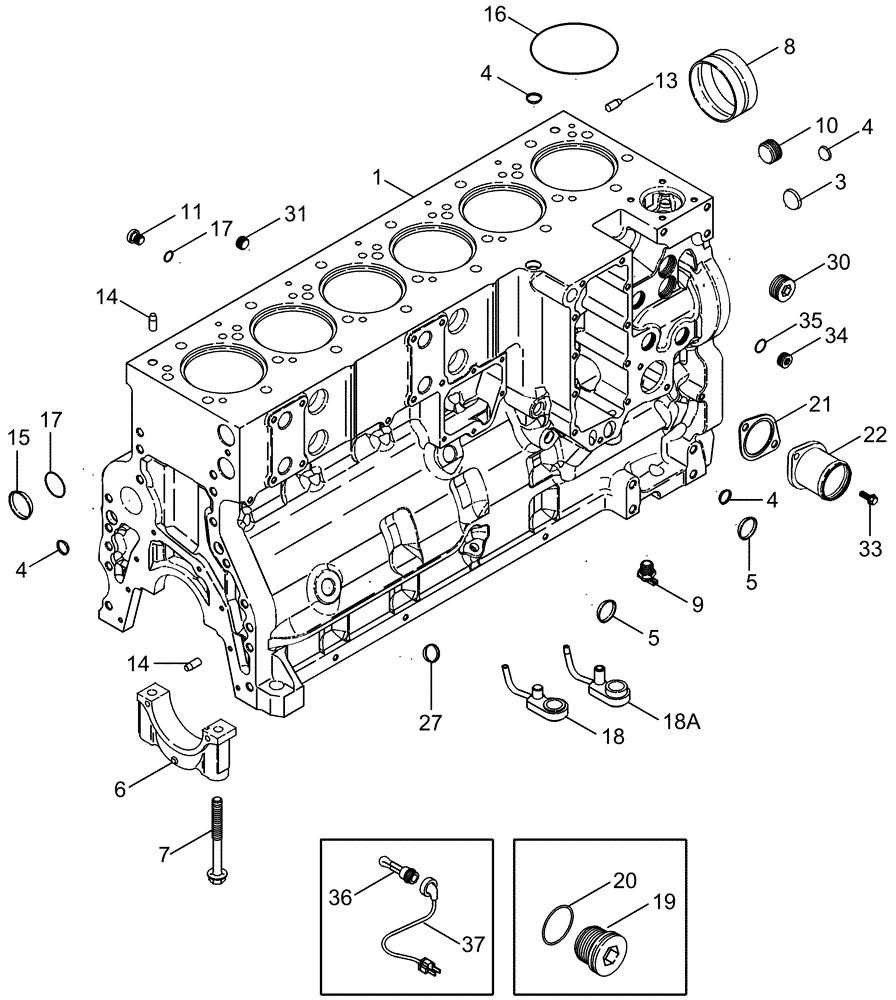

Запчасти Case IH 2388 (02-25) - CYLINDER BLOCK - ENGINE BLOCK HEATERS - ASN HAJ0295001 EXCEPT ALL CIS MARKETS (01) - ENGINE

87351542

BASIC ENGINE

Service, Tier 3

1шт.

87351542R

REMAN-BASIC ENGINE

2388 - CASE IH AXIAL-FLOW COMBINE (NA) BTW HAJ292001 & HAJ300000 Tier 3 (10/04-) CYLINDER BLOCK - ENGINE BLOCK HEATERS - ASN HAJ0295001 EXCEPT ALL CIS MARKETS

1шт.

87351542C

CORE-BASIC ENGINE

Return Number

1шт.

Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Turbocharger and Aftercooler

1шт.

Less Front Pulley, Belt Tensioner, Oil Fill and Dipstick, Fuel Injection Pump, Flywheel and Housing

1шт.

Do not return the old engine until any external components not supplied have been installed.

1шт.

87432483

ENGINE

New, Complete, Tier 2, For 2388

1шт.

1

84165305

CYLINDER BLOCK

Short, Includes 2 - 8

1шт.

Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

3

A77586

PLUG

28.9 mm

3шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Main Bearing

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

87338079

KIT

Includes 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4" PT

2шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Includes 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

4шт.

14

J901846

PIN,12.01mm OD x 24mm L

8шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

2шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

2шт.

18

87338171

NOZZLE

6шт.

18a

87337015

NOZZLE

12шт.

19

J678921

PLUG

14 mm, Includes 20

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J913030

FITTING

Water Inlet

1шт.

27

A77530

PLUG

1-13/64" OD (30 mm)

4шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

5шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

6шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Includes 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

1шт.

310493A1

KIT

Engine Block Heater, 120 Volt, Includes 36 - 37

1шт.

36

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72")

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

310494A1

KIT

Coolant Heater, 240V, Includes 36 - 37

1шт.

36

J913112

WIRE HARNESS

305 mm (12")

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

87348859

ENGINE OVERHAUL KIT

Engine Overhaul, Not Illustrated

1шт.

See Figure 02-46

1шт.

41

J900956

PLUG

(Not Shown)

3шт.

42

87338185

BOLT

(Not Shown)

1шт.

43

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

(Not Shown)

1шт.

44

87337018

BOLT

(Not Shown)

6шт.

45

J678923

PLUG,M10 x 1

(Not Shown)

6шт.

46

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

(Not shown)

1шт.

47

J678921

PLUG

(Not Shown)

1шт.

48

J678912

O-RING,2.2mm Thk x 11.3mm ID

(Not Shown)

1шт.

49

A77586

PLUG

(Not Shown)

3шт.

50

J909025

FLANGE BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

M8 x 1.25 x 55 (Not Shown)

6шт.
