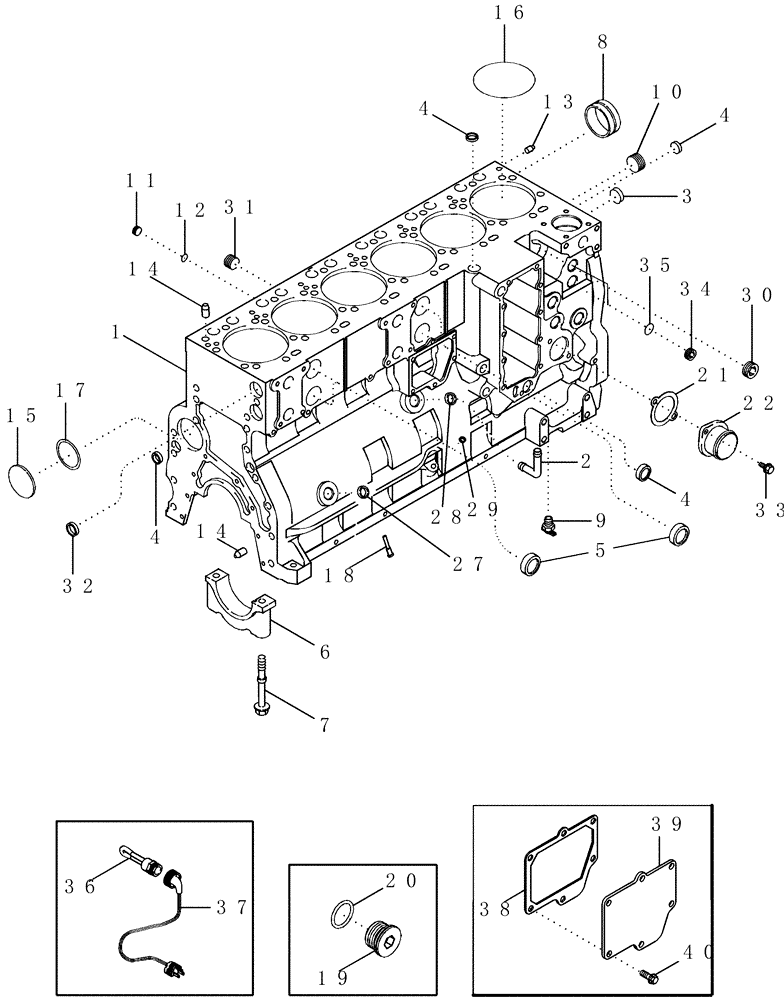

Запчасти Case IH 2388 (02-24) - CYLINDER BLOCK - ENGINE BLOCK HEATERS - BSN HAJ0295001 AND ALL CIS MARKETS (01) - ENGINE

87411283

BASIC ENGINE

Service, 6TAA-830 Tier 2

1шт.

Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Turbocharger and Aftercooler

1шт.

Less Front Pulley, Belt Tensioner, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Flywheel and Housing

1шт.

87411283R

REMAN-BASIC ENGINE

ENGINE (EXCHANGE) Remanufactured, For N.A. Only

1шт.

87411283C

CORE-BASIC ENGINE

Return Number, For N.A. Only

1шт.

87411285

BLOCK

Short Block, Inc.: Strip Blk., Crank, Pistons & Sleeves,Rods, Rings,Rod & Main Brgs.

1шт.

87411285R

REMAN-SHORT ENGINE

2388 BTW HAJ292001 & HAJ300000, BSN HAJ0295001 AND ALL CIS MARKETS (10/04-)

1шт.

87411285C

CORE-ENGINE

Return Number

1шт.

87432483

ENGINE

New Complete, Tier 2 For 2388

1шт.

1

84165306

CYLINDER BLOCK

Stripped, Includes 3 - 8, Also Order 87444569

1шт.

2

87437056

TUBE,.875" OD

Turbo Drain

1шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Main Bearing

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Camshaft

7шт.

87444569

SERVICE KIT

Includes 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4" PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Includes 12

5шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

5шт.

13

J900257

PIN,10.01mm OD x 16mm L

10 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

19

J678921

PLUG

14 mm, Includes 20

2шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J913030

FITTING

Water Inlet

1шт.

27

A77530

PLUG

1-13/64" OD (30 mm)

1шт.

28

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

29

J943808

PLUG

13 mm

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

2шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

32

J920443

PLUG

30 mm

2шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Includes 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

1шт.

310493A1

KIT

Engine Block Heater, 120 Volt, Includes 36 - 37

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72")

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

310494A1

KIT

Coolant Heater, 240V, Includes 36 - 37

1шт.

36

J913112

WIRE HARNESS

305 mm (12")

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

38

87436828

GASKET

1шт.

39

87413814

COVER

Used without Side Crankcase Breather

1шт.

40

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

6шт.

A78017

REPAIR KIT

Engine Overhaul, Not Illustrated

1шт.

See Figure 02-45

1шт.

87307606

ENGINE

Engine 2388, 6CTAA-830, 280HP

1шт.

87307606C

CORE-EPA ENGINE

Return Number, For N.A. Only

1шт.
