Запчасти Case IH 2388 (09E-08) - UNLOADER, CHAIN DRIVE (17) - GRAIN TANK & UNLOADER

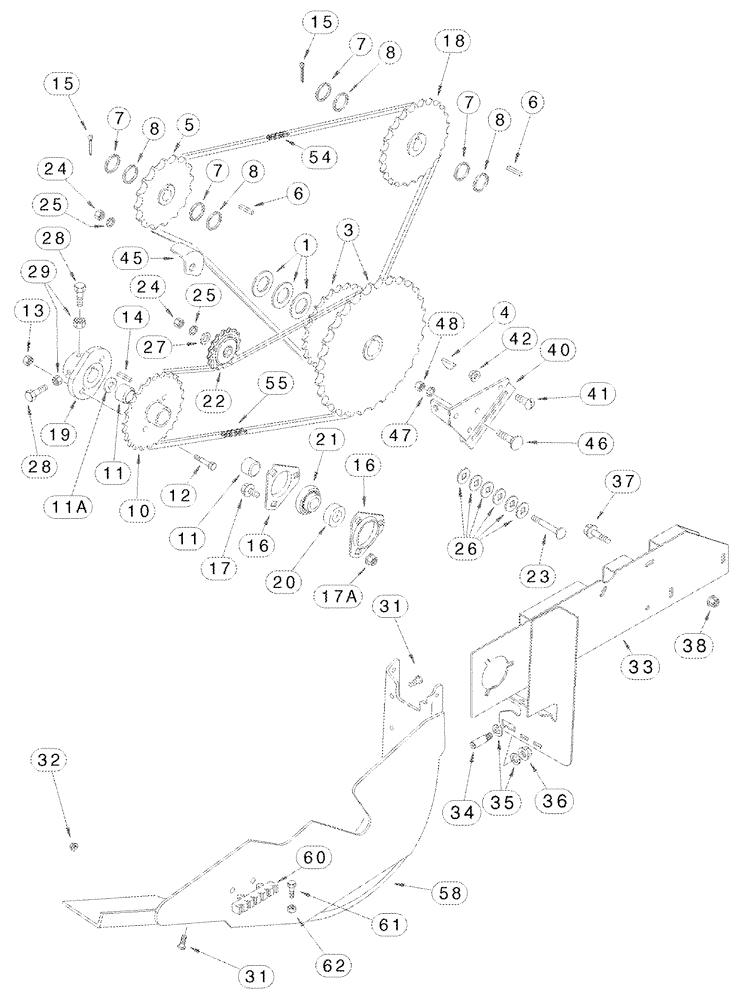

Схема запчастей Case IH 2388 - (09E-08) - UNLOADER, CHAIN DRIVE (17) - GRAIN TANK & UNLOADER
31
8
6
20
36
7
15
17a
28
13
33
7
8
37
1
5
58
11
16
29
32
7
42
24
35
22
25
61
7
15
26
11a
8
62
12
8
4
45
18
54
19
38
48
27
23
3
16
10
11
40
17
60
47
34
24
28
41
21
6
55
46
25
31
14

Артикул

Название

Примечание

Количество

1

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1-13/32" x 2-1/4" x 1/8"

1шт.

1

1327731C1

THRUST WASHER

1-13/32" x 2-1/4" x 1/8"

3шт.

3

1347402C1

SPROCKET

33T, 57T

1шт.

4

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

43T

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

4шт.

8

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

10шт.

10

1347360C1

SPROCKET

Drive, Includes 11

1шт.

11

1347384C1

BEARING,31.77mm ID x 19.05mm L

1шт.

11a

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

2шт.

12

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

5/16" x 1-1/4"

2шт.

13

231-1445

NUT,5/16"-18, GB

2шт.

14

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

16

86620026

FLANGED BEARING

2шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

17a

231-5146

FLANGE NUT,3/8"-16

3шт.

18

192925C1

SPROCKET

37T, Driven

1шт.

19

1347399C1

HUB

1шт.

20

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

1шт.

21

87431214

COLLAR,31.8mm ID x 53.98mm OD x 17.5mm W

1шт.

22

87302107

SPROCKET

17T

1шт.

23

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

26

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

2шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

28

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

29

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

31

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

3шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

33

139706A3

SUPPORT

Outer

1шт.

34

282145A1

SPECIAL BOLT,1/2" - 13 x 3/4", Grade 8

1шт.

35

495-21050

WASHER,7/16"

2шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

37

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

40

175595A1

SUPPORT

1шт.

41

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

45

936878R1

BLOCK

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

48

425-108

NUT,1/2" - 13, Gr 5

1шт.

54

113200A1

CHAIN

Order 1790D (149), 1301D (1)

1шт.

55

1303207C91

CHAIN

Order 1791D (127), 1310D (2), 1315D (1) and 1309D (1)

1шт.

58

140181A3

SHIELD

1шт.

60

3102155R1

HOLDER

1шт.

61

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

5/16" x 1-1/4"

6шт.

62

231-1445

NUT,5/16"-18, GB

6шт.

Выбрано товаров: 52
