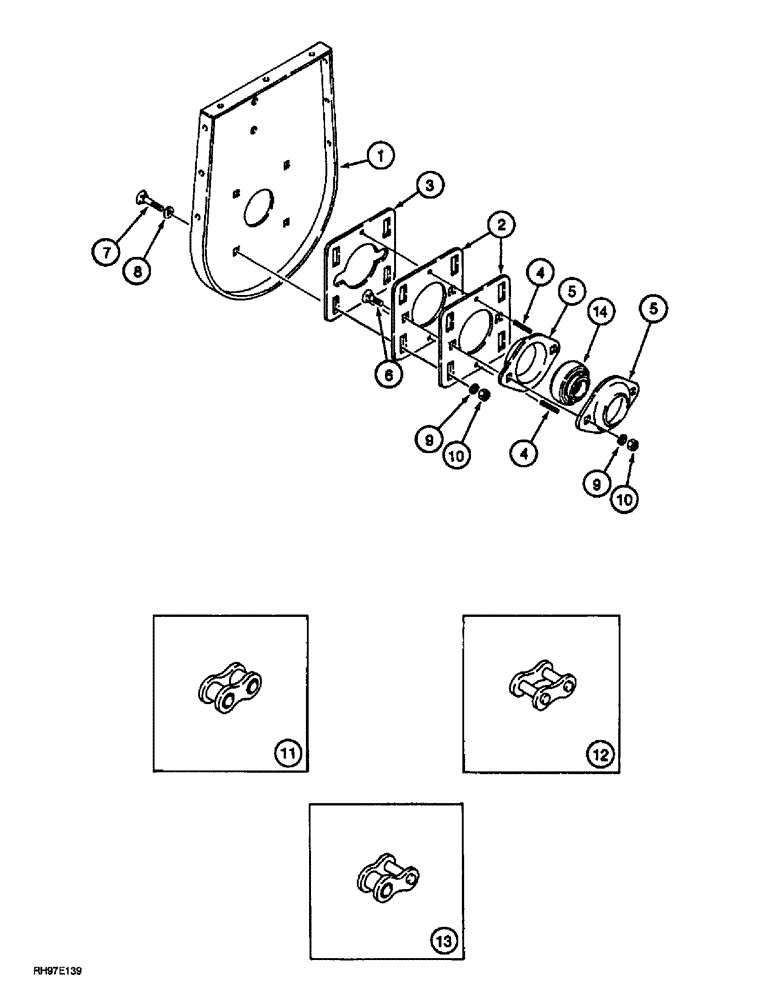

Запчасти Case IH 2388 (09D-06) - GRAIN ELEVATOR, OUTER BOOT AND ELEVATOR SLIDE ADJUSTER (16) - GRAIN ELEVATORS & AUGERS

1

223237A1

SIDE PLATE

Boot, Outer

1шт.

224768A1

ADJUSTING PLATE

Elevator Slide Adjuster, Includes 2 - 10

1шт.

252686A1

ADJUSTING PLATE

Elevator Adjuster, Extended Wear, Includes 2 - 4

1шт.

2

224769A1

SUPPORT

Slide Adjuster, Outer

1шт.

3

224770A1

SUPPORT

Slide Adjuster, Inner

2шт.

4

87040774

LOCK PIN,1/4" x 1/2", Slotted

2шт.

5

136978

FLANGED BEARING

Bearing Retaining

2шт.

6

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

7

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

11

241-1115

LINK,Chain, 15.87mm Pitch

Roller, Single Pitch, No. 50, Use to Extend the Elevator Drive Chain, If Required

3шт.

12

241-1315

LINK, CONNECTING

Single Pitch, No. 50, Use to Extend the Elevator Drive Chain, If Required

3шт.

13

241-18113

LINK,41.4mm Pitch

Offset, Single Pitch, No. C550, If Required

2шт.

14

473093R92

BEARING ASSY,34.92mm ID x 72mm OD x 19mm W

Ball

1шт.

15

87034815

LINK,15.88mm Pitch

No. 50, If Required

1шт.
