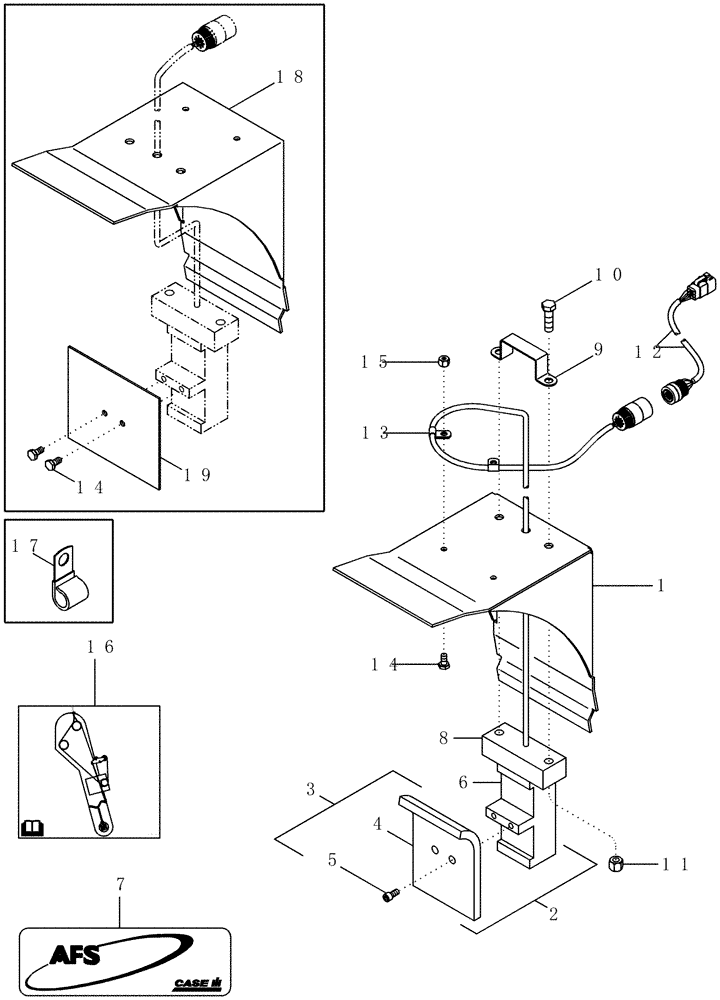

Запчасти Case IH 2388 (09D-04) - GRAIN ELEVATOR HEAD, INCLINED - AFS FLOW SENSOR (16) - GRAIN ELEVATORS & AUGERS

1

87301201

COVER

Flow Sensor, Includes 2 - 17

1шт.

2

224597A3

SENSOR

Assy, Flow, Includes 3 - 7

1шт.

3

87301202

KIT

Impact Plate - Yield Monitor, Includes 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Plate, Impact

1шт.

5

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

6

NSS

NOT SOLD SEPARAT

Flow Sensor

1шт.

7

239258A1

DECAL

AFS Logo

1шт.

8

224605A1

BLOCK

Deflector Mounting

1шт.

9

NSS

NOT SOLD SEPARAT

Handle

1шт.

10

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

2шт.

12

318575A1

WIRE HARNESS

1шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

2шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

15

230-4214

LOCK NUT,1/4"-20, GA

1шт.

16

239313A1

DECAL

Inclined Delivery GPS/AFS

1шт.

17

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

18

437111A1

SENSOR

Low Flow

1шт.

19

437112A1

PLATE

Impact, Low Flow

1шт.
