Запчасти Case IH 2388 (09C-02) - BEATER PAN - DISCHARGE - CORN AND GRAIN - FIXED (15) - BEATER & CLEANING FANS

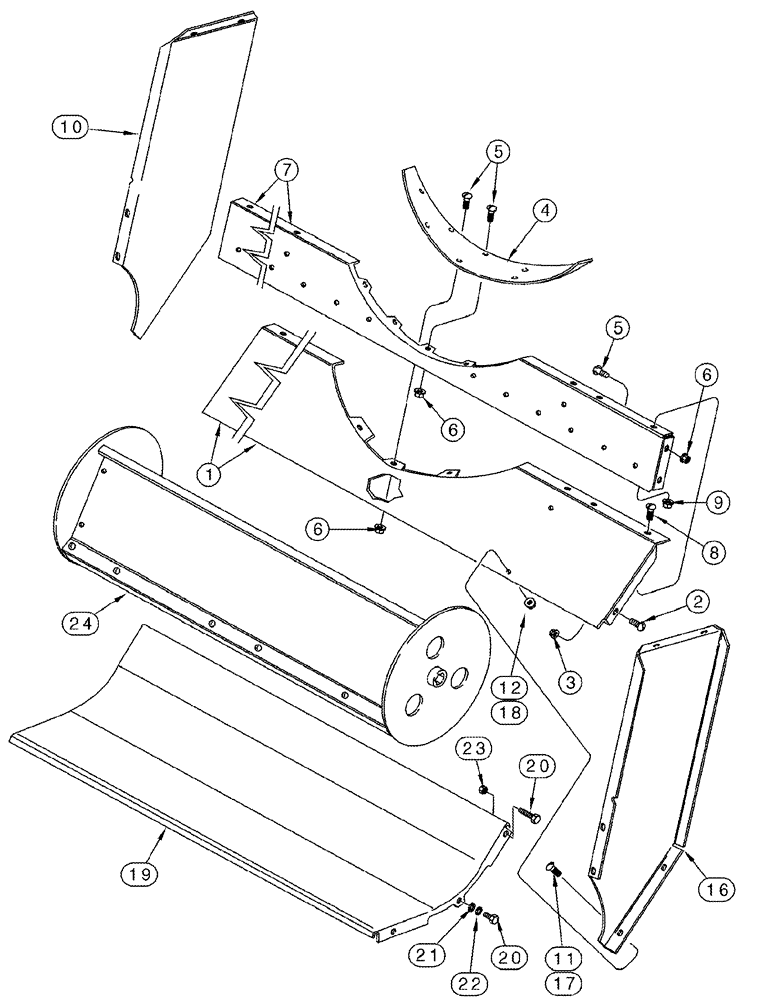

Схема запчастей Case IH 2388 - (09C-02) - BEATER PAN - DISCHARGE - CORN AND GRAIN - FIXED (15) - BEATER & CLEANING FANS
9
17
20
22
23
6
24
1
5
21
10
12
3
5
19
6
20
11
16
7
4
18
8
2
6

Артикул

Название

Примечание

Количество

1

191000C1

SUPPORT

Beater Discharge

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

193916C1

SUPPORT

Beater Pan, Front Bottom

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

7шт.

6

231-5146

FLANGE NUT,3/8"-16

7шт.

7

182931C1

SUPPORT

Cage, Lower Rear

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

10

193454C1

DEFLECTOR

Discharge, LH

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

16

193455C1

DEFLECTOR

Discharge, RH

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

5шт.

17

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

18

231-5146

FLANGE NUT,3/8"-16

6шт.

19

195454C2

SUPPORT

Rear Bottom

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

232-4116

NUT,3/8"-16, GC

2шт.

24

REF

INSTRUCTION

Beater Assy, Discharge

1шт.

See Figure 09C-01

1шт.

Выбрано товаров: 24
