(02-18) - MANIFOLDS - BSN HAJ0295001 AND ALL CIS MARKETS

Запчасти Case IH 2388 (02-18) - MANIFOLDS - BSN HAJ0295001 AND ALL CIS MARKETS (01) - ENGINE

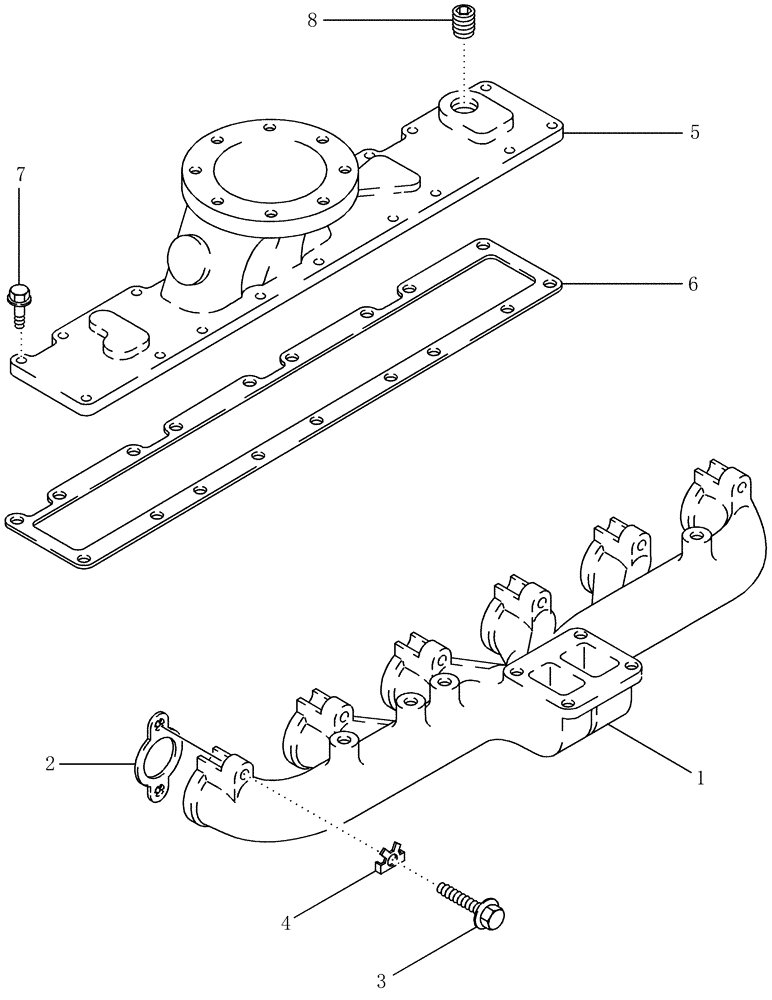

Схема запчастей Case IH 2388 - (02-18) - MANIFOLDS - BSN HAJ0295001 AND ALL CIS MARKETS (01) - ENGINE
8
3
4
5
7
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87405601

MANIFOLD

Exhaust

1шт.

2

J932063

MANIFOLD GASKET,1.78mm Thk

6шт.

3

J929537

BOLT

M10 x 70

12шт.

4

J914708

LOCKING PLATE

12шт.

5

J926044

COVER

Intake

1шт.

6

J936993

MANIFOLD GASKET,0.76mm Thk

1шт.

7

J938036

BOLT,Flng, M8 x 1.25 x 30mm, Cl 10.9

M8 x 30; 8.8

18шт.

8

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.
