Запчасти Case IH 2388 (09C-01) - BEATER - DISCHARGE (15) - BEATER & CLEANING FANS

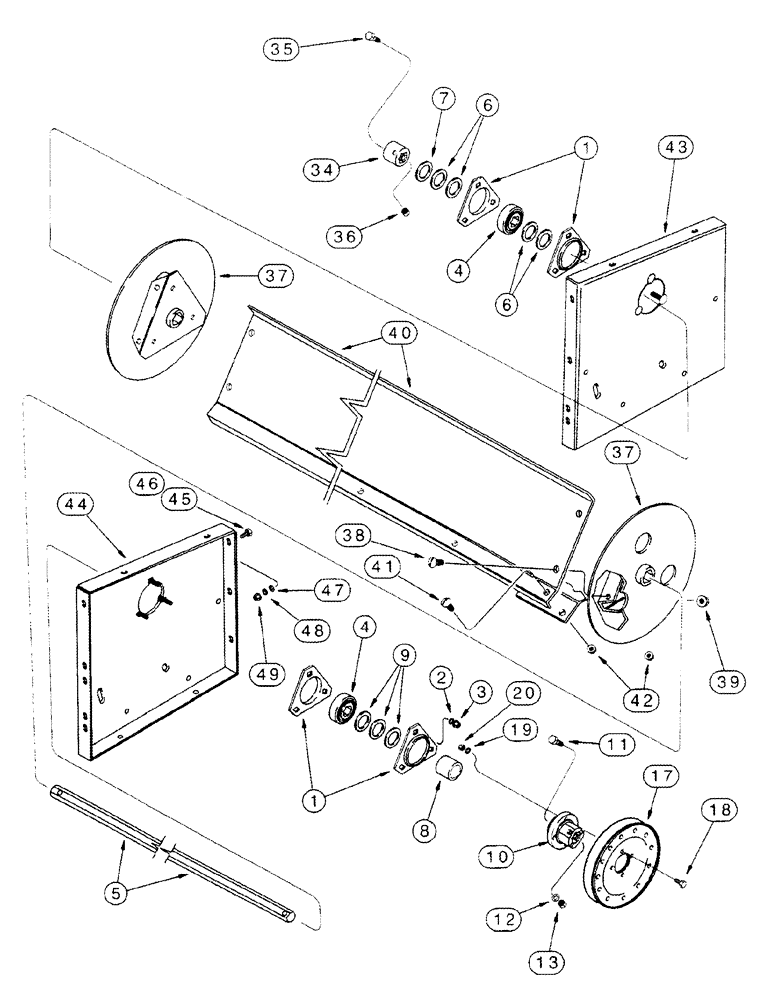

Схема запчастей Case IH 2388 - (09C-01) - BEATER - DISCHARGE (15) - BEATER & CLEANING FANS
12
17
35
42
2
6
6
49
1
8
10
36
4
48
13
44
3
37
7
19
34
43
47
41
1
5
38
9
45
39
46
20
18
4
11
40
37

Артикул

Название

Примечание

Количество

1

86620026

FLANGED BEARING

4шт.

2

492-11038

LOCK WASHER,3/8"

6шт.

3

425-106

NUT,3/8"-16, Cl 5

6шт.

4

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

5

1302176C2

SHAFT

1шт.

6

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

5шт.

7

495-81210

WASHER,34.14mm ID x 50.8mm OD x 1.7mm Thk

1шт.

8

632147R1

SPACER

1-5/8" OD x 1-5/8"

1шт.

9

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

3шт.

10

1319402C1

HUB

1шт.

11

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1шт.

12

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

1шт.

13

232-4118

NUT,1/2"-13, GC

1шт.

17

195161C1

PULLEY

8-3/8" OD

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

492-11031

LOCK WASHER,5/16"

4шт.

20

425-105

NUT,5/16"-18, G5

4шт.

34

117051A1

HUB

1шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

36

231-4116

NUT,3/8"-16, GB

1шт.

37

1319266C1

HUB

Triangular Beater

2шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

12шт.

39

231-5146

FLANGE NUT,3/8"-16

12шт.

40

1319270C1

BLADE

3шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

18шт.

42

231-5146

FLANGE NUT,3/8"-16

18шт.

43

181061C2

SUPPORT

LH

1шт.

44

181062C2

SUPPORT

RH

1шт.

45

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

13шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

LH

1шт.

46

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

RH

2шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

18шт.

48

492-11038

LOCK WASHER,3/8"

16шт.

49

425-106

NUT,3/8"-16, Cl 5

18шт.

Выбрано товаров: 34
