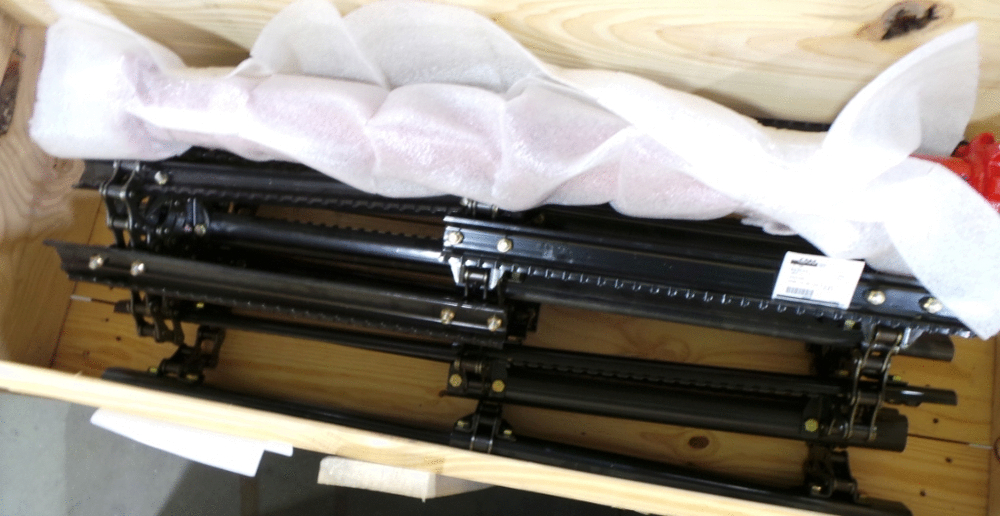

Запчасти Case IH 2388 (09B-32) - PACKAGE 3 STRAND SERR 54.5 W/O DRUM (14) - ROTOR, CONCANVES & SIEVE

1

B93533

PACKAGE

Includes 2 - 12

1шт.

2

185817C3

PLATE

Stripper Support

1шт.

3

84207190

CHAIN,Feeder, 69 Links x 41.4mm = 2857.5mm

1шт.

4

87530580

STRIPPER

Stripper Feeder Sprocket Center

1шт.

5

1989592C1

SUPPORT

Feeder Pivot LH

1шт.

6

1989593C1

SUPPORT

Feeder Pivot RH

1шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

8

233211A1

SHEET

1шт.

9

86624124

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

10

87613203

WASHER,1.78" ID x 2.5" OD x 0.06" Thk

6шт.

11

87315913

SPROCKET ASSY.,Feeder

1шт.

12

8-97672

MANUAL, OPERATORS

1шт.
