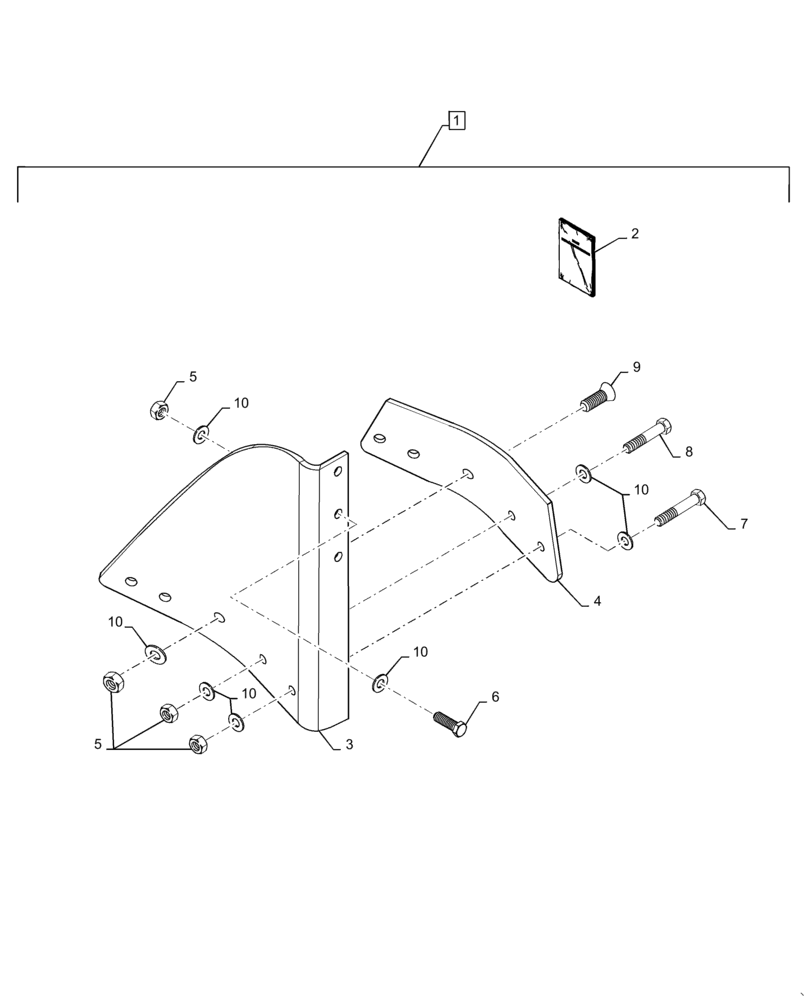

Запчасти Case IH 2388 (09B-29) - KIT ROTOR IMPELLER 80 CHROME BLADES (14) - ROTOR, CONCANVES & SIEVE

1

B93733

KIT

Incl 2 - 10

1шт.

2

8-28572

INSTRUCTION

1шт.

3

1309114C2

BLADE

Rotor Impeller

2шт.

4

1309186C3

SUPPORT

Wear Plated

2шт.

5

199528A1

NUT

16шт.

6

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

7

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

8

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

5шт.

9

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

6шт.

10

87393626

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

26шт.
