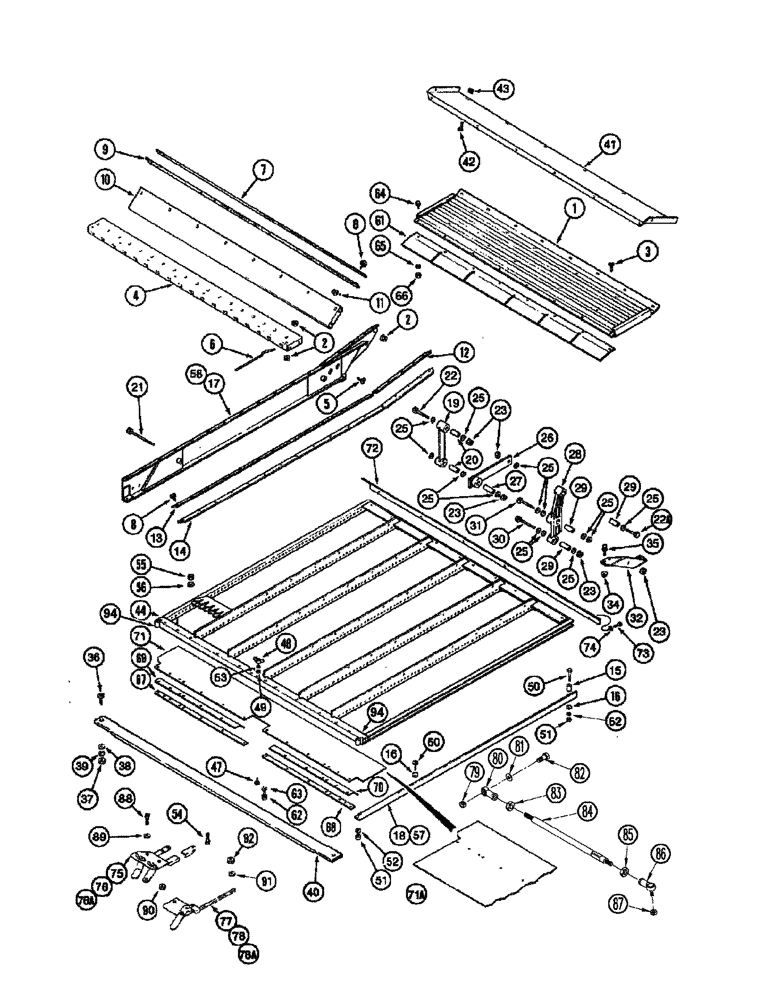

Запчасти Case IH 2388 (09B-24) - CHAFFER - SIEVE (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
1
1312938C1
GRAIN PAN
GRAINPAN
1шт.
2
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
3
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
1шт.
4
1312969C1
SUPPORT
1шт.
5
460-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
4шт.
6
175114C1
FINGER,Formed, 1 Prong, 264mm L
Short
27шт.
6
1312476C1
FINGER,Formed, 1 Prong, 495.5mm L
Long
27шт.
7
192050C2
BAR
1шт.
9
192049C1
SEALING STRIP
1шт.
10
192045C1
SUPPORT
1шт.
11
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
4шт.
12
192052C3
BAR
Short
2шт.
13
1325332C2
BAR
Long
2шт.
14
1325331C1
SEALING STRIP
2шт.
15
645342C1
SPACER,10.34mm ID x 15.87mm OD x 25.4mm L
3/8 ID x 1
2шт.
16
495-81138
WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk
2шт.
17
1322452C2
RAIL
1шт.
18
1325333C3
SUPPORT
LH
1шт.
19
1957455C1
ARM
Includes 20
2шт.
20
1330324C1
BUSHING
2шт.
21
426-10120
BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8
2шт.
22
426-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 8
2шт.
22a
426-1072
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8
2шт.
23
232-41110
NUT,5/8"-11, GC
10шт.
23
425-1410
JAM NUT,Jam, 5/8"-11, G5
1шт.
25
496-11066
WASHER,21/32" x 1 5/16" x .095", HDN
26шт.
25
495-81057
WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk
4шт.
26
1330357C1
ARM
Includes 27
2шт.
27
1330324C1
BUSHING
1шт.
28
1957460C2
LEVER
Includes 29
2шт.
29
1330323C2
BUSHING
5/8" x 1-1/2" x 2-57/64"
3шт.
31
433-1080
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5
2шт.
32
1968827C1
SUPPORT
LH
1шт.
33
1968828C1
SUPPORT
RH, Not Illustrated
1шт.
34
231-5146
FLANGE NUT,3/8"-16
8шт.
35
409-7612
BOLT,3/8"-16 x 1.09" OAL
8шт.
36
443-13116
SCREW,Cross Flat Hd, 5/16"-18 x 1"
1шт.
37
425-105
NUT,5/16"-18, G5
1шт.
40
1322458C3
SUPPORT
1шт.
41
192065C1
SUPPORT
1шт.
42
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
14шт.
42
409-7520
BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl
8шт.
42
477-73116
SERRATED SCREW,Truss HD, 5/16" - 18 x 1"
2шт.
43
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
14шт.
44
1322673C6
GRAIN SIEVE
1-5/8", Closz Slat Chaffer, Includes 76, 77, 88 - 93
1шт.
44
374476A1
GRAIN SIEVE
1-5/8", Closz Slat Chaffer, Includes 76A, 78A, 88 - 93
1шт.
44
1322659C6
GRAIN SIEVE
1-5/8", Corn Slat Chaffer, Includes (1 each) 47, 48, 53, 64, 76, 77, 78C
1шт.
44
1347372C7
GRAIN SIEVE
Petersen Chaffer, Includes (1 each) 47 - 48A, 53, 64, 75, 78, 78C; (2 each) 48A
1шт.
44
1322467C6
GRAIN SIEVE
1-1/8", Closz Slat, Adjustable Chaffer, Includes (1 each) 47 - 48A, 53, 64; (2 each) 49, 75, If Used
1шт.
44
387443A1
GRAIN SIEVE
1-1/8", Closz Slat, Adjustable Chaffer, Includes (1 each) 48, 64, 76A, 78A, 88; (2 each) 89, 91, 92; (3 each) 48, 53, 78B, 90, 93, If Used (Shown)
1шт.
47
412-48
CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2
1шт.
48
129-409
WING NUT,1/4"-20
(3 each) Used with 387443A1, 374476A1
1-3шт.
48
231-4144
NUT,1/4"-20, GB
1шт.
48a
495-11028
WASHER,1/4", SAE
Used with 1322673C6, 1322659C6, 1347372C7
2шт.
49
495-21031
WASHER,1/4"
(2 each) Used with 1322467C6; (3 each) Used with 387443A1, 374476A1
2-3шт.
50
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
2шт.
51
429-106
NUT,3/8"-16, G8
4шт.
52
80680
LOCK WASHER,3/8 0.381 CST ZND
4шт.
53
492-11025
LOCK WASHER,1/4"
Used with 387443A1, 374476A1
1-3шт.
54
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
7шт.
54
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
4шт.
55
232-4115
LOCK NUT,5/16"-18, GC
14шт.
56
495-81119
WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk
14шт.
57
1325334C3
SUPPORT
RH
1шт.
58
1322453C2
RAIL
RH
1шт.
61
1994858C1
COVER
1шт.
62
1327799C2
FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated
2шт.
63
492-11038
LOCK WASHER,3/8"
2шт.
64
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
65
492-11025
LOCK WASHER,1/4"
8шт.
66
425-104
NUT,1/4"-20, Cl 5
8шт.
67
1338345C2
RETAINER
LH
1шт.
68
1338346C1
RETAINER
RH
1шт.
69
1322698C3
ANGLE
LH Rear
1шт.
70
1322699C3
ANGLE
RH Rear
1шт.
71
1979332C4
SEAL,3.05mm Thk
1шт.
With Straw Chopper
1шт.
71a
124004A2
SEAL
1шт.
With Straw and Chaff Spreader
1шт.
72
120001A1
DEFLECTOR
Used with 1347372C7
1шт.
73
281-5458
SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"
6шт.
74
495-31022
WASHER,#10
6шт.
75
280367A2
LEVER
Rear, Used with 1322467C6, 1347372C7
1шт.
76
280369A2
LEVER
Rear, Used with 1322659C6, 1322673C6
1шт.
76a
418798A1
LEVER
Rear, Used with 387443A1, 374476A1
1шт.
77
280365A2
LEVER
Front, Used with 1322659C6, 1322673C6
1шт.
78
280375A1
LEVER
Front, Used with 1347372C7
1шт.
78a
418799A1
LEVER
Front, Used with 387443A1, 374476A1
1шт.
78b
418797A1
BUSHING,10.5mm ID x 16mm OD x 7mm L
Used with 387443A1, 374476A1
3шт.
78c
120667A1
PLATE
Indicator, Double Adjustment Lever, Used with 1322467C6, 1347372ZC7, 1322659C6, 1322673C6 Not Illustrated
1шт.
79
231-4146
NUT,3/8"-16, GB
1шт.
80
427179A1
BALL JOINT HEAD,3/8" - 24
End
1шт.
81
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
1шт.
82
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
83
425-156
JAM NUT,Jam, 3/8"-24, G5
1шт.
84
407139A2
ADJUSTMENT ROD
Upper Chaffer Sieve
1шт.
85
129-289
JAM NUT,Jam, 3/8"-24, G5, LH
1шт.
86
403123A1
BALL JOINT,3/8" - 24
End, Studded
1шт.
87
232-4646
LOCK NUT,3/8"-24, GC
1шт.
88
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
Used with 387443A1, 374476A1
1шт.
88
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
Used with 387443A1, 374476A1
1шт.
89
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
Used with 387443A1, 374476A1
2шт.
90
832-10410
NUT,M10 x 1.5, Cl 8
Used with 387443A1, 374476A1
3шт.
91
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
Used with 387443A1, 374476A1
2шт.
92
832-10408
NUT,M8 x 1.25, Cl 8.8
Used with 387443A1, 374476A1
2шт.
93
433-412
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5
Used with 387443A1, 374476A1
3шт.
94
1327799C2
FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated
2шт.
Выбрано товаров: 112
