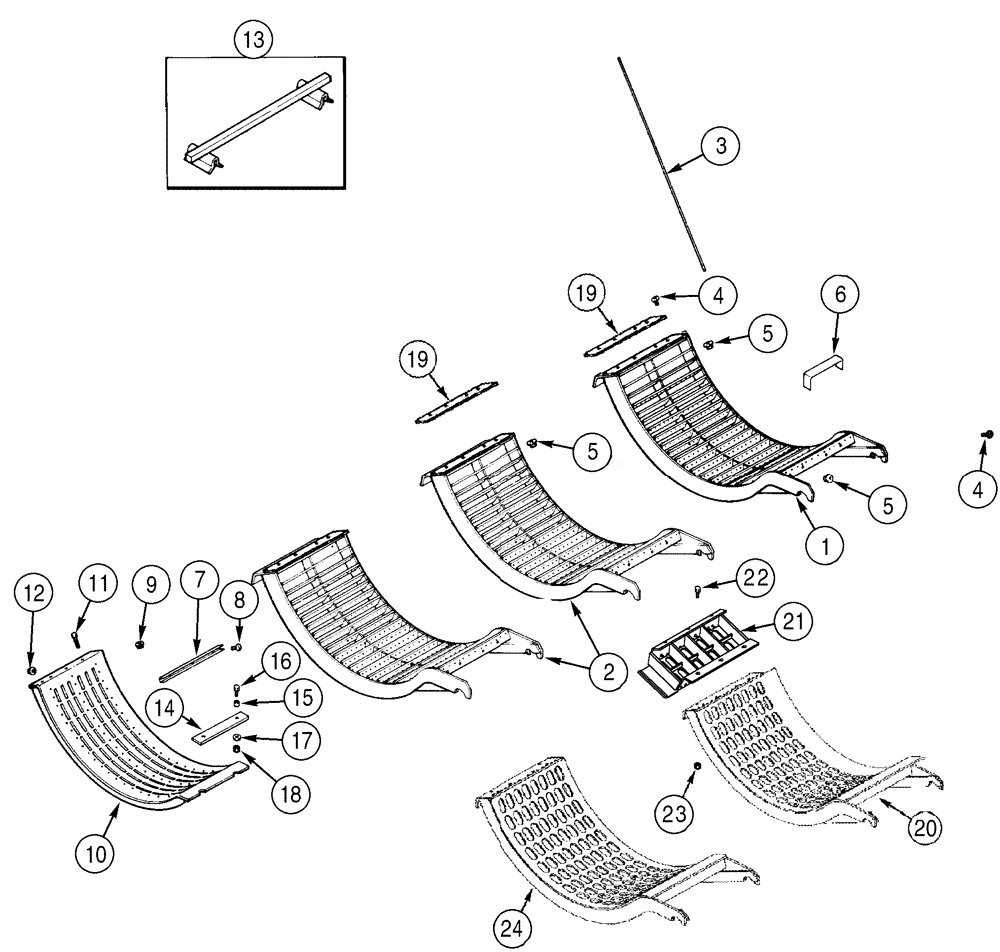

Запчасти Case IH 2388 (09B-17) - CONCAVES - GRATES AND CONCAVES (14) - ROTOR, CONCANVES & SIEVE

1

418647A1

CONCAVE

Front, Small Wire, Includes 3 - 5, 19

1шт.

With Heat Treatment

1шт.

1

386188A1

CONCAVE

Front, Large Wire Extension, Includes 3 - 5

1шт.

Without Heat Treatment

1шт.

1

418645A1

CONCAVE

Front, Large Wire Extension, Includes 3 - 5, 19

1шт.

With Heat Treatment

1шт.

2

386189A1

CONCAVE

No. 2 and 3, Large Wire Extension, Includes 3 - 5

1шт.

Without Heat Treatment

1шт.

2

418646A1

CONCAVE

No. 2 and 3, Large Wire Extension, Includes 3 - 5, 19

1шт.

With Heat Treatment

1шт.

2

418648A1

CONCAVE

No. 2 and 3, Small Wire Extension, Includes 3 - 5, 19

1шт.

With Heat Treatment

1шт.

3

386352A1

WIRE

WIRE Concave, Large

14шт.

3

418158A1

WIRE

WIRE Concave, Small

30шт.

4

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

8шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

1309425C1

CHANNEL

Small Wire

6шт.

6

1309424C1

CHANNEL

Large Wire

6шт.

7

191536C1

CHANNEL

Grate Adjusting, Corn, Used with 191535C2, Ref. 10

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

191535C2

GRATE

Slotted, Grain

3шт.

10

1302563C1

CONCAVE

Keystock

3шт.

11

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

1шт.

12

231-5146

FLANGE NUT,3/8"-16

1шт.

13

1324046C3

BAR

Small Wire

1шт.

14

186784C2

BAR

3шт.

15

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

16

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

17

495-11053

WASHER,1/2", SAE

6шт.

18

232-4118

NUT,1/2"-13, GC

6шт.

19

193859C1

PLATE

Concave

2шт.

352729A1

CONCAVE

Assy. Includes 20 - 23

1шт.

20

316772A1

CONCAVE

Front Smooth Slotted, No. 1

1шт.

21

316773A1

EXTENSION

Concave, Front

1шт.

23

231-5146

FLANGE NUT,3/8"-16

4шт.

24

316778A1

CONCAVE

Smooth Slotted, No. 2. No. 3

1шт.

25

316774A1

EXTENSION

Concave, Front

1шт.
