Запчасти Case IH 2388 (09B-16) - CAGE - REAR (14) - ROTOR, CONCANVES & SIEVE

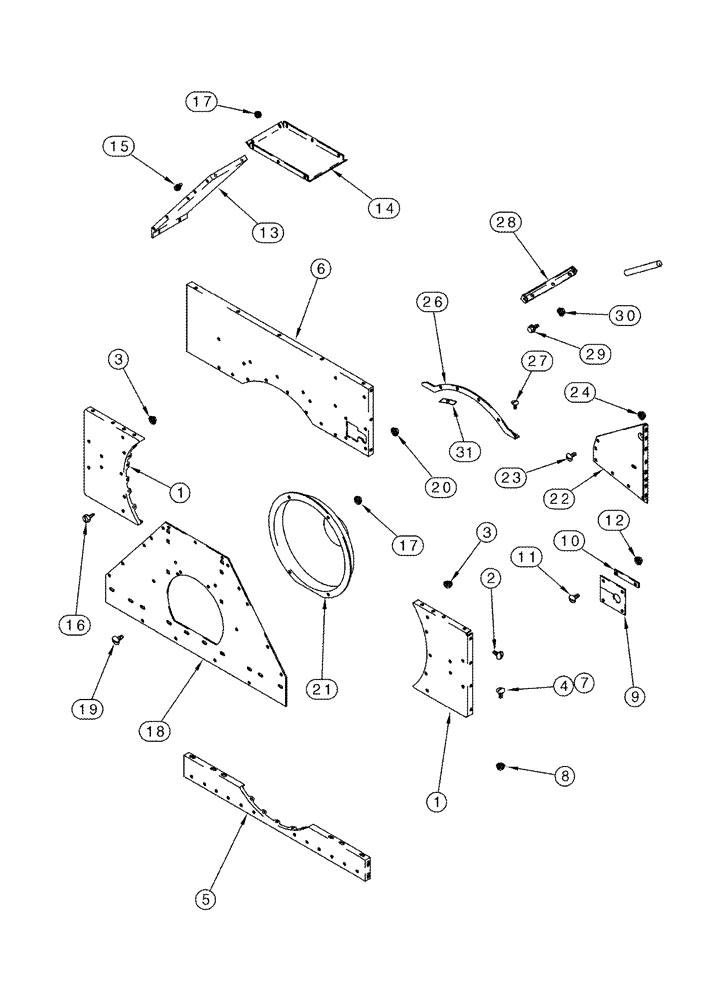

Схема запчастей Case IH 2388 - (09B-16) - CAGE - REAR (14) - ROTOR, CONCANVES & SIEVE
14
12
7
3
1
29
8
28
24
18
20
30
5
1
9
15
26
16
22
31
6
2
3
13
21
17
11
23
4
17
10
27
19

Артикул

Название

Примечание

Количество

1

191269C4

SUPPORT

Rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

24шт.

3

231-5146

FLANGE NUT,3/8"-16

40шт.

4

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

5

182931C1

SUPPORT

Lower Rear

1шт.

6

176201A1

SHEET

Upper Rear

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

15шт.

8

231-5146

FLANGE NUT,3/8"-16

15шт.

9

191191C2

GASKET,6.35mm Thk

1шт.

10

191192C1

BAR

2шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

13

193393C1

COVER

2шт.

14

193170C1

COVER

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

16

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16" x 13/16"

3шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

18

443254A1

SHEET

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

28шт.

19

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

28шт.

21

182550C2

HOUSING

1шт.

22

191398C2

SHEET

Gear Housing, Inner

1шт.

23

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

26

1308696C1

SUPPORT

Upper Rear

1шт.

27

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

28

182634C3

SUPPORT

1шт.

29

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2" x 1"

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

31

186797C2

SUPPORT

1шт.

Выбрано товаров: 32
