Запчасти Case IH 2388 (09B-12) - CONE (14) - ROTOR, CONCANVES & SIEVE

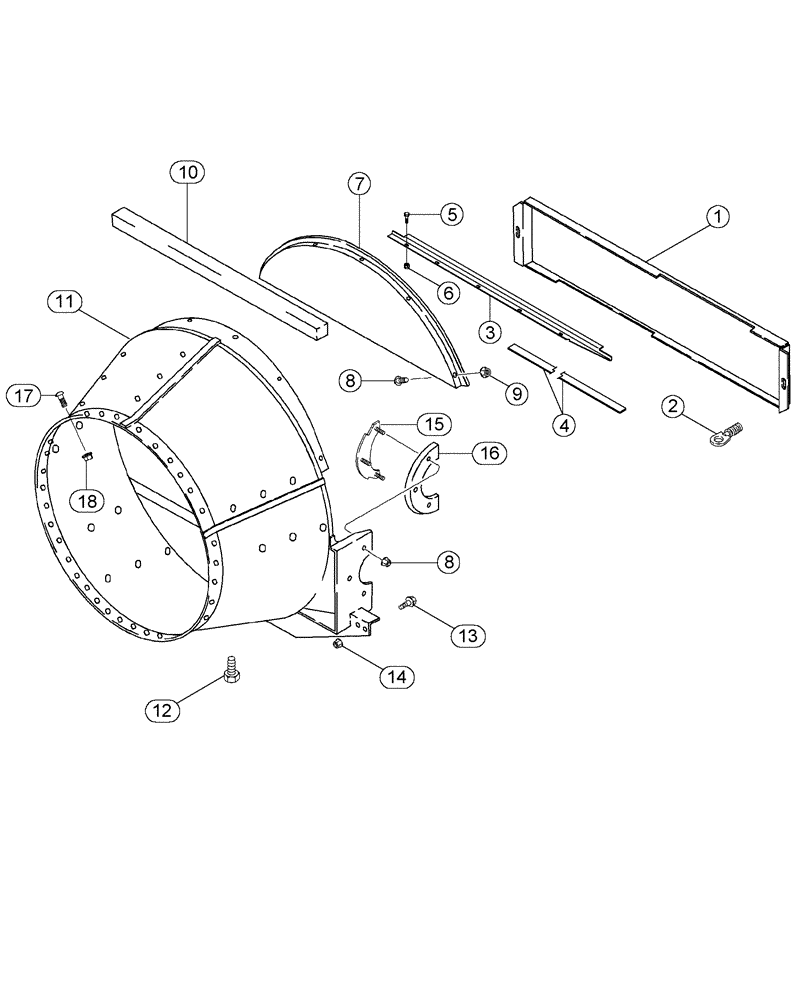

Схема запчастей Case IH 2388 - (09B-12) - CONE (14) - ROTOR, CONCANVES & SIEVE
10
11
15
2
9
1
3
5
18
16
6
17
12
7
8
13
8
14
4

Артикул

Название

Примечание

Количество

1

193608C6

SHEET

Rotor Front Door

1шт.

2

188029C1

LATCH

2шт.

3

231848A1

RETAINER

Front Door Lower Seal

1шт.

4

231849A2

DOOR SEAL,995mm L

Front Door Lower Seal

1шт.

5

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

7

193607C3

SUPPORT

Rotor Front, Standard Wear

1шт.

7

291127A1

GUARD

Rotor Front, Extended Wear

1шт.

Rice Combine

1шт.

8

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

10шт.

10

233482A1

DOOR SEAL,380mm L

2шт.

11

428242A1

CONE

Standard Wear, Includes 12

1шт.

11

428873A1

CONE

Extended Wear, Includes 12

1шт.

11

428872A1

CONE

Extended Wear, Includes 12

1шт.

Rice Combine

1шт.

12

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

195409C1

PLATE

Three Stud

2шт.

16

195202C1

SEAL

2шт.

17

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8" x 1-1/4"

2шт.

17

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8" x 1"

23шт.

18

231-5146

FLANGE NUT,3/8"-16

25шт.

19

195917C1

GASKET

Seal, Rear Service Deck Connection, Cut 1260 mm from 195917C2, Not Illustrated

1шт.

Выбрано товаров: 25
