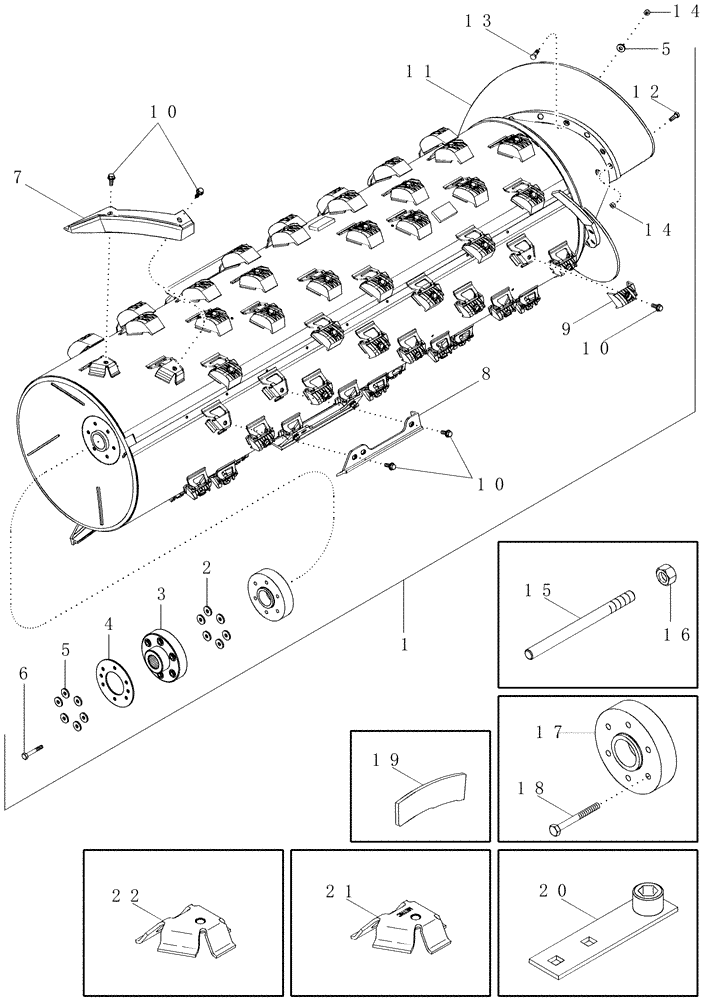

Запчасти Case IH 2388 (09B-10) - ROTOR ASSY - SPECIALTY AFX (14) - ROTOR, CONCANVES & SIEVE

87432480

ROTOR

ASSY, AFX Speciality Corn, Standard Wear, Includes 1 - 14

1шт.

87432245

ROTOR

ASSY, AFX Speciality Grain, Extended Wear, Includes 1 - 14

1шт.

446449A2

ROTOR

ASSY, AFX Speciality Rice, Extended Wear, Includes 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR ASSY, With Supports and Nuts

1шт.

2

195-81030

WASHER

17/32" x 1-1/2" x 3/16"

6шт.

3

87406731

COUPLING

Rotor Drive, Includes 3A

1шт.

3a

1345453C1

RUBBER INSULATOR

Not Illustrated

6шт.

4

221189A1

SPACER

Rotor Load Ring

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

18шт.

6

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

7

1327676C1

BAR

Helical Kicker, Standard Wear

2шт.

7

86996452

BAR

Helical Kicker, Extended Wear

2шт.

8

86996451

BAR

Straight Separator, Standard Wear

8шт.

8

86992047

BAR

Straight Separator, Extended Wear

4шт.

9

1309336C2

RASP BAR

Without Rear Spike, Standard Wear

62шт.

9

278821A2

RASP BAR

Without Spike, Extended Wear

70шт.

9

278820A4

RASP BAR

With Spike, Extended Wear, Rice

1шт.

10

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

82шт.

434525A3

KIT

AFX Rotor Inlet Flight with Extensions, Includes 11, 12 (16), 13 (12), 14 - 16, 5 (12)

1шт.

11

NSS

NOT SOLD SEPARAT

FLIGHT, Inlet

2шт.

12

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

13

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

14

199528A1

NUT

16шт.

15

86989978

ROD

Installation Guide, AFX Inlet Flight

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

1шт.

86990684

KIT

Rotor Drive Spacer, Includes 17, 18

1шт.

17

443256A1

SPACER

1шт.

18

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

6шт.

19

446451A2

PLATE

Inlet Flight Extension

2шт.

20

87417745

SPECIAL WRENCH

Rasp Bar

1шт.

21

87281664

SUPPORT

Rasp Bar w/Metric Nut, Accepts M12 Bolt

1шт.

S/N HAJ0292001 and After

1шт.

22

411421A2

BRACKET

Rasp Bar w/Inch Nut, Accepts 1/2" Bolt

1шт.

If Equipped

1шт.
