Запчасти Case IH 2388 (09B-09) - ROTOR ASSY - SPECIALTY (14) - ROTOR, CONCANVES & SIEVE

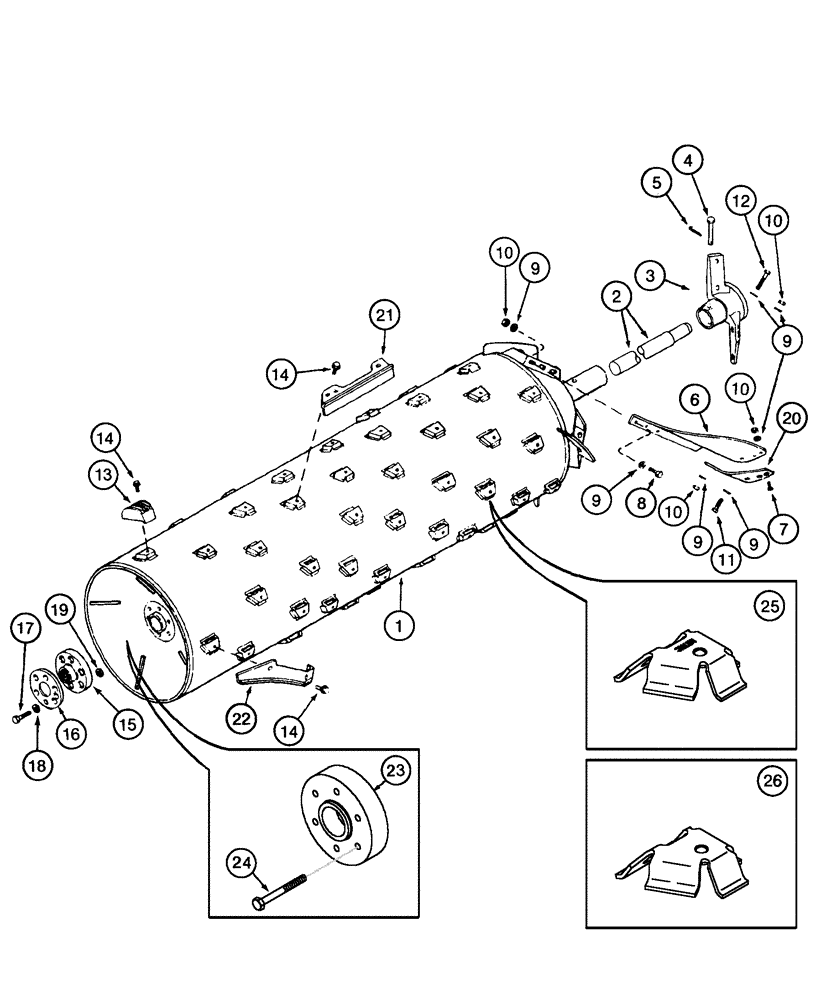

Схема запчастей Case IH 2388 - (09B-09) - ROTOR ASSY - SPECIALTY (14) - ROTOR, CONCANVES & SIEVE
7
6
5
16
20
14
11
12
22
10
25
8
9
13
4
14
10
9
10
19
24
18
23
21
17
10
1
15
9
14
26
9
9
2
3

Артикул

Название

Примечание

Количество

87434967

ROTOR

Corn, Includes 1 - 22

1шт.

87434966

ROTOR

Grain, Includes 1 - 22

1шт.

352424A2

ROTOR

Rice, Extended Wear Chrome Bars, Includes 1-22

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

2

191545C2

SHAFT

1шт.

3

184460C1

IMPELLER

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

Rotor Blade, Includes 6 - 12

1шт.

6

1309114C2

BLADE

Rotor, 30"

2шт.

7

87301496

HEX SOC SCREW,Flat Hd, CSK, 1/2" - 13 x 1 1/2"

6шт.

8

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

26шт.

10

199528A1

NUT

1/2"; 8

16шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

13

1309336C2

RASP BAR

Without Rear Spike, Corn

58шт.

13

278821A2

RASP BAR

Without Spike, Grain

66шт.

13

111709A1

RASP BAR

Smooth, Optional

1шт.

14

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

78шт.

15

87406731

COUPLING

Includes 15A

1шт.

15a

1345453C1

RUBBER INSULATOR

Not Illustrated

6шт.

16

221189A1

SPACER

1шт.

17

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

18

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

6шт.

19

195-81030

WASHER

17/32" x 1-1/2" x 3/16"

6шт.

20

1309186C3

SUPPORT

Wear, Impeller Blade, Chrome

2шт.

21

1318976C2

BAR,Straight Seperator

Straight Separator, Standard Wear Corn

8шт.

21

86992047

BAR

Straight Separator, Extended Wear Grain

4шт.

22

1327676C1

BAR

Helical Kicker, Standard Wear

2шт.

22

86992048

BAR

Helical Kicker, Extended Wear

2шт.

86990684

KIT

Spacer, Includes 23, 24

1шт.

23

443256A1

SPACER

1шт.

24

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

6шт.

25

87281664

SUPPORT

Rasp Bar w/Metric Nut, Accepts M12 Bolt

1шт.

S/N HAJ0292001 and After

1шт.

26

411421A2

BRACKET

Rasp Bar w/Inch Nut, Accepts 1/2" Bolt

1шт.

If Equipped

1шт.

Выбрано товаров: 38
