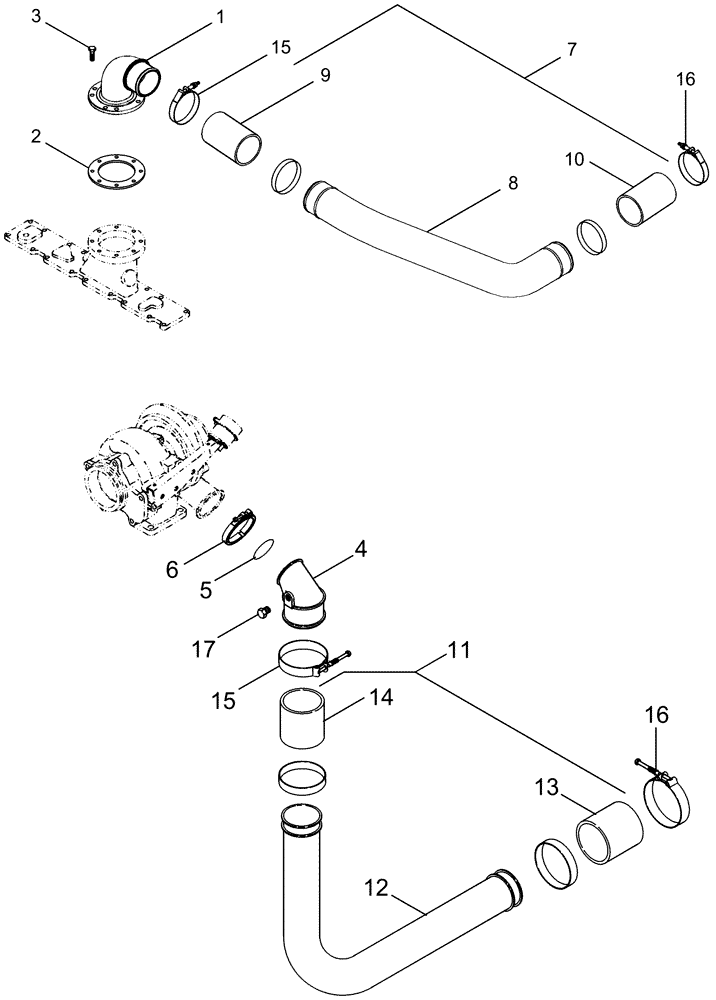

Запчасти Case IH 2388 (02-12) - INTAKE SYSTEM, CHARGE AIR COOLER - BSN HAJ0295001 AND ALL CIS MARKETS (01) - ENGINE

1

87404219

ELBOW

Engine Intake Manifold

1шт.

2

J917892

GASKET,0.79mm Thk

1шт.

3

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

4

87301923

ELBOW

Turbo Outlet

1шт.

5

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

6

J069053

CLAMP,66.54mm ID

Turbo Outlet

1шт.

7

87302166

TUBE

Charge Air Cooler, Cold Side, Inc. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Tube

1шт.

9

87402764

HOSE

3"

1шт.

10

87402762

HOSE

4"

1шт.

11

87313867

TUBE

Charge Air Cooler, Hot Side, Inc. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Tube

1шт.

13

87402761

HOSE

4"

1шт.

14

87402763

HOSE

3"

1шт.

15

87421230

CLAMP,82.55mm - 90.42mm

2шт.

16

87420676

HOSE CLAMP,108mm - 115.8mm

4"

2шт.

17

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.
