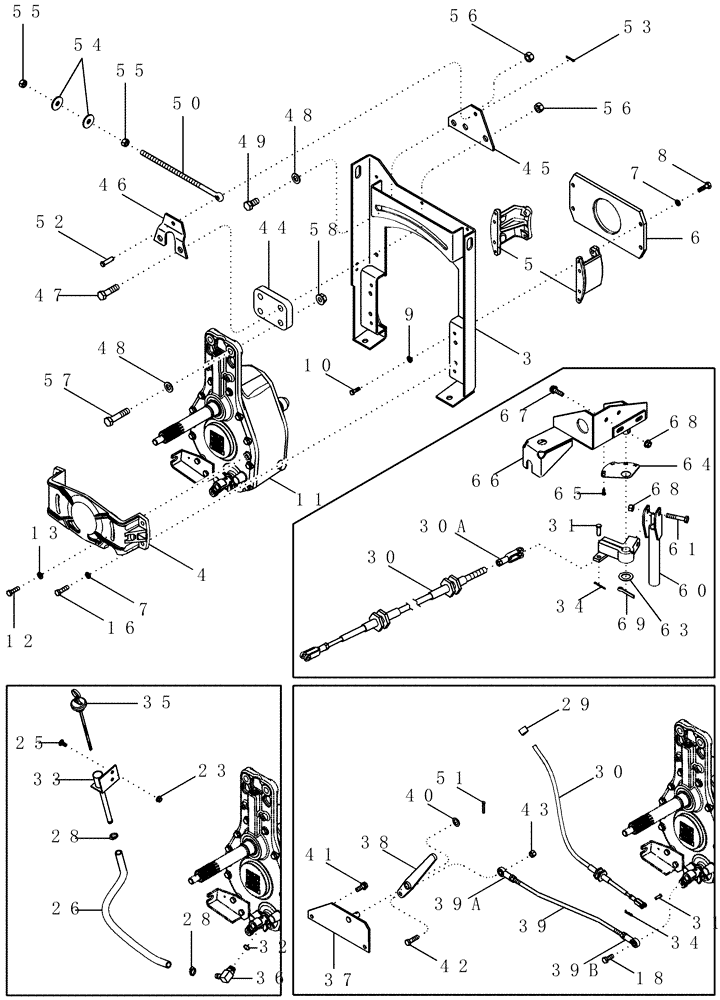

Запчасти Case IH 2388 (09B-01) - ROTOR DRIVE - GEARBOX MOUNTING - BSN HAJ0295001 (14) - ROTOR, CONCANVES & SIEVE

3

86992365

SUPPORT

Rotor Gearbox

1шт.

4

194058C1

SUPPORT

Rear

1шт.

5

181314C2

BLOCK

Front

2шт.

6

181315C1

PLATE

Front Support

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

87401155

GEARBOX

1шт.

See Figure 09B-04

1шт.

12

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

16

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

25

135270

SERRATED SCREW,5/16" - 18 x 3/4"

2шт.

26

194043C1

HYDRAULIC HOSE,12.70 mm ID x 483.00 mm

1шт.

27

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

1шт.

28

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

29

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

30

236859A2

CABLE,3810mm L

Shift, Includes 30A

1шт.

30a

213-325

CLEVIS,5/16"

5/16" NF

2шт.

31

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

193946C1

TUBE,12.7 mm OD

1шт.

34

432-612

COTTER PIN,3/32" x 3/4"

2шт.

35

194066C91

DIPSTICK

Includes 35A

1шт.

35a

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

36

188272C1

ELBOW

90 deg

1шт.

37

87400381

GUIDE

Shift Handle

1шт.

38

86991655

HANDLE

1шт.

39

86991658

ROD

Includes 39A, 39B

1шт.

39a

86582884

BALL JOINT

2шт.

39b

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

40

495-81037

WASHER,25/32" x 1 1/4" x .060"

1шт.

41

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

42

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

43

232-4118

NUT,1/2"-13, GC

1шт.

44

86991660

PLATE

Gearbox Spacer

1шт.

45

276078A2

PLATE

1шт.

46

282906A1

STRAP

1шт.

47

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

2шт.

48

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

49

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

1шт.

50

188143C1

EYEBOLT

1шт.

51

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

52

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1шт.

53

432-1216

COTTER PIN,3/16" x 1"

1шт.

54

495-81030

WASHER,21/32" x 2" x .179"

2шт.

55

425-1010

NUT,5/8"-11, G5

2шт.

56

429-1012

NUT,3/4"-10, G8

3шт.

57

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

2шт.

58

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

59

254982A2

SHAFT

3 Speed Gearbox

1шт.

60

276073A2

HANDLE

3 Speed Rotor Shift

1шт.

61

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

62

280736

NUT,5/16"-18, GC

1шт.

63

495-81039

WASHER,25/32" x 1 1/4" x .120"

1шт.

64

255651A5

PLATE

Shift Indicator

1шт.

65

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

66

253851A3

SUPPORT

Front Shift Support

1шт.

67

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

68

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

69

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.
