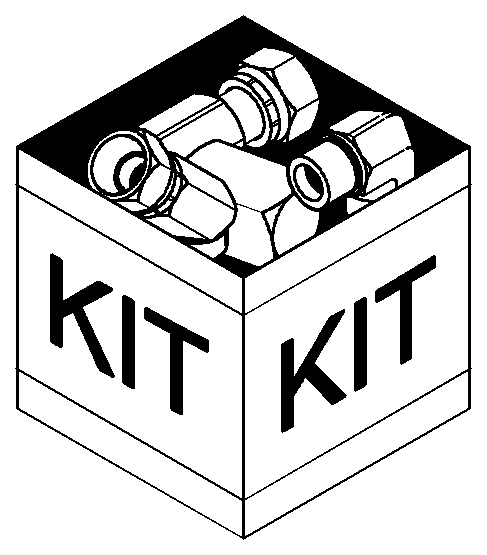

Запчасти Case IH 2388 (09A-18[01]) - KIT CHAIN 3 STRAND 54.5 W/DRUM (13) - FEEDER

1

B93529

CHAIN (AG)

Incl 2 - 13

1шт.

2

8-97672

MANUAL, OPERATORS

1шт.

3

185817C3

PLATE

1шт.

4

84207190

CHAIN,Feeder, 69 Links x 41.4mm = 2857.5mm

1шт.

5

196409A2

DRUM,273.1mm OD x 1057mm L

1шт.

6

87530580

STRIPPER

1шт.

7

1989592C1

SUPPORT

1шт.

8

1989593C1

SUPPORT

1шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

10

233211A1

SHEET

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

12

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

6шт.

13

87315913

SPROCKET ASSY.,Feeder

1шт.
